Supported material structure

General information

In order for 3D model textures to be collected, the scene must contain a supported material structure.

This document provides a list of various methods for connecting PBR textures in both Blender and Autodesk 3ds Max.

Mandatory PBR textures:
  • BaseColor
  • Normal
  • Roughness
  • Metalness
Optional PBR textures:
  • Emissive
  • AO
  • Opacity

Note:

  • AO, Metalness, Roughness textures could be presented as ORM or RMA textures.
  • Opacity could be presented in the BaseColor alpha channel.
  • Due to the limitations of FBX, when exporting and importing an FBX file between different software, it is possible that certain material nodes and textures within the material may not be preserved.



Material preparation:

Autodesk 3ds Max

Supported materials

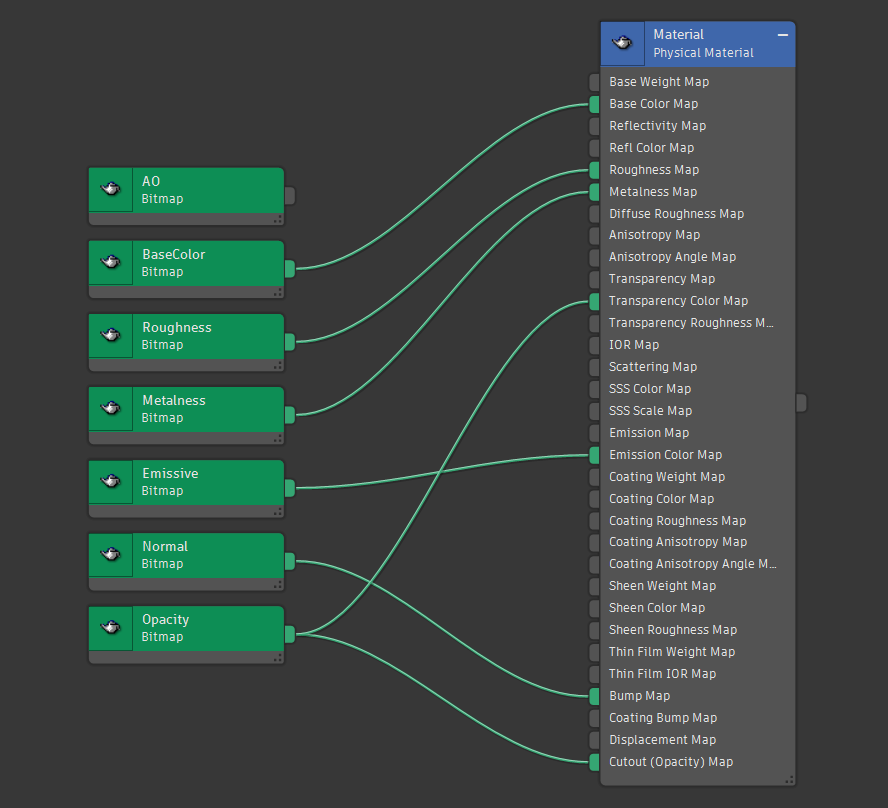

Physical Material setup

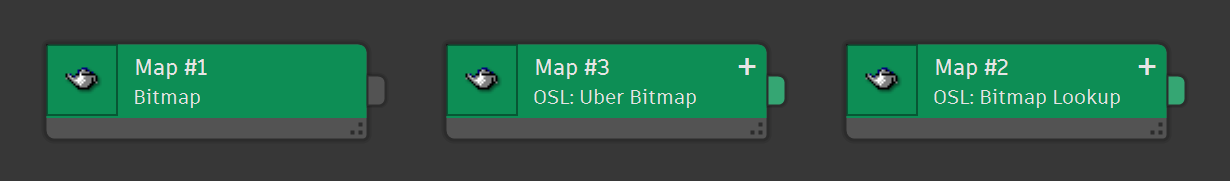

“Bitmap”, “OSL Uber Bitmap” and “OSL Bitmap Lookup” nodes could be used to load textures.

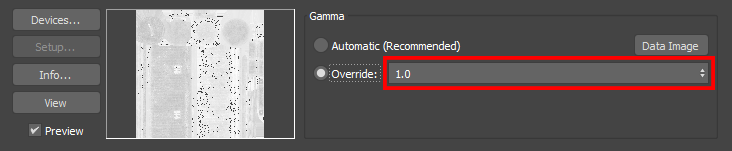

If “Bitmap” is used to load textures, then:
    • AO, Metalness, Roughness, Opacity, Normal, ORM, RMA gamma should be 1.0

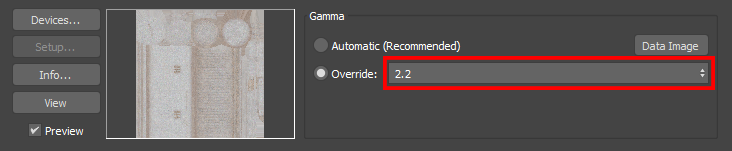

    • BaseColor, Emissive gamma should be 2.2

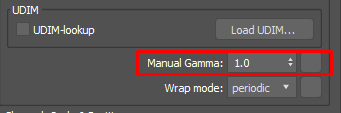

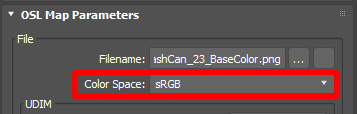

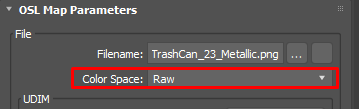

If  “Bitmap Lookup” or “Uber Bitmap” is used to load textures, then Color space for:
    • AO, Metalness, Roughness, Opacity, Normal, ORM, RMA should be Raw
    • BaseColor, Emissive should be sRGB
    • Manual gamma should be 1.0


BaseColor

Option 1

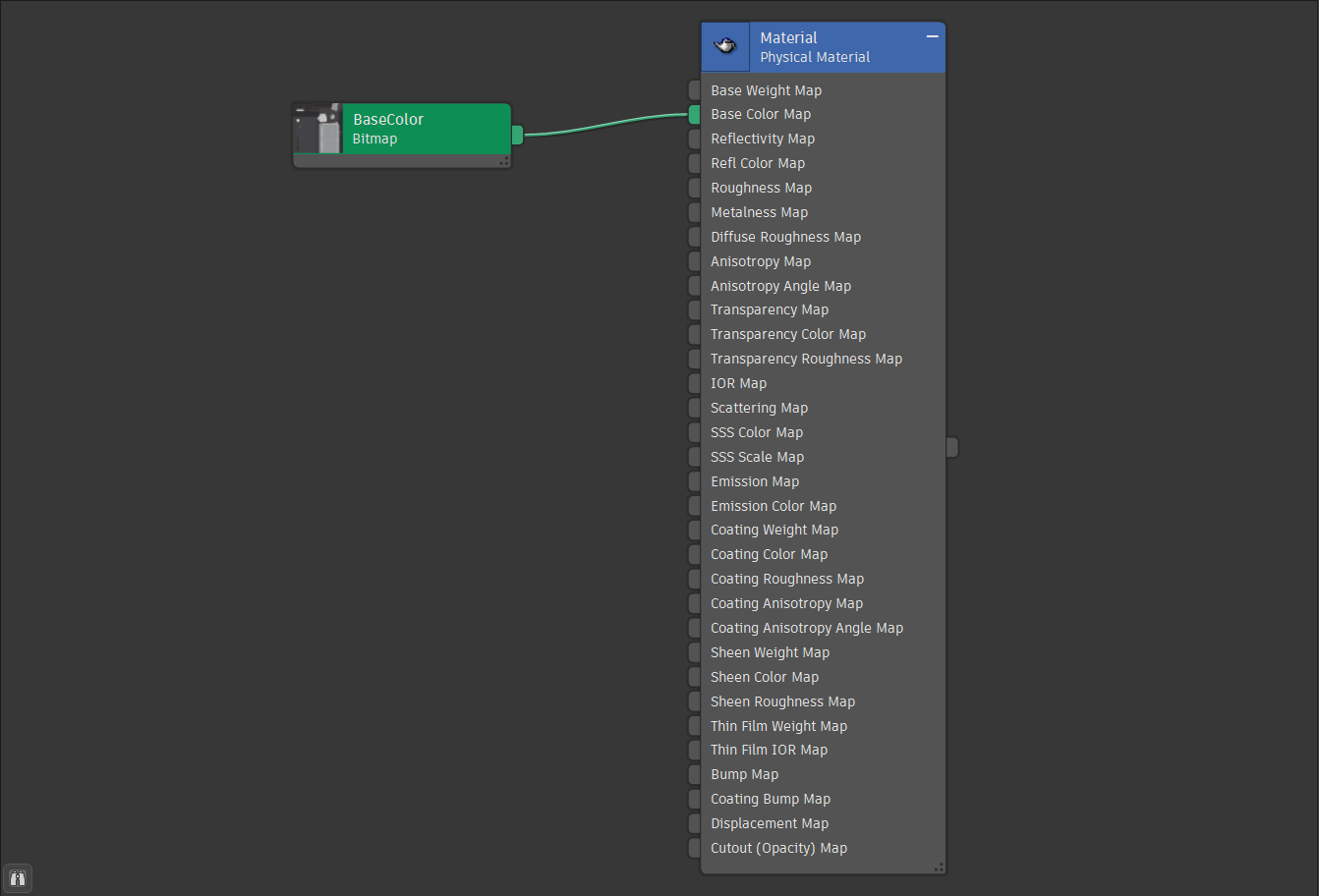

Bitmap node with a BaseColor texture connected directly to the material Base Color map input slot.Physical_Material_BC_1.png

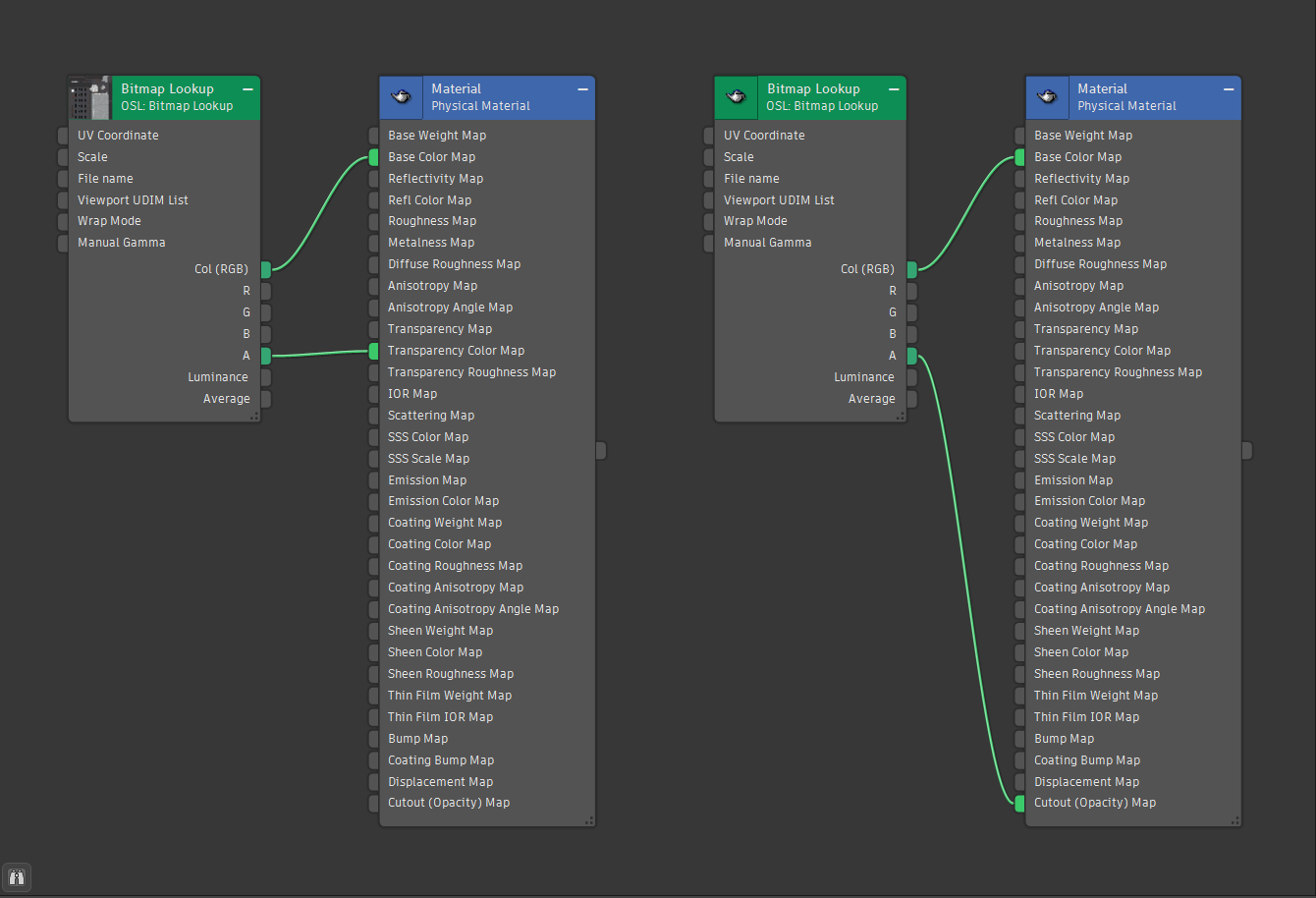

Option 2
If BaseColor texture has an Opacity map in the alpha channel, then:

  • OSL Bitmap Lookup map should be used to load a texture with an alpha channel.
  • RGB output should be connected to the material Base Color map input slot.
  • Alpha output should be connected to the material Transparency Color map or Cutout (Opacity) map input slots.


Option 3
If BaseColor texture has an Opacity map in the alpha channel, then:

  • OSL Uber Bitmap map should be used to load a texture with an alpha channel.
  • RGB output should be connected to the material Base Color map input slot.
  • Alpha output should be connected to the material Transparency Color map or Cutout (Opacity) map input slots.


Roughness

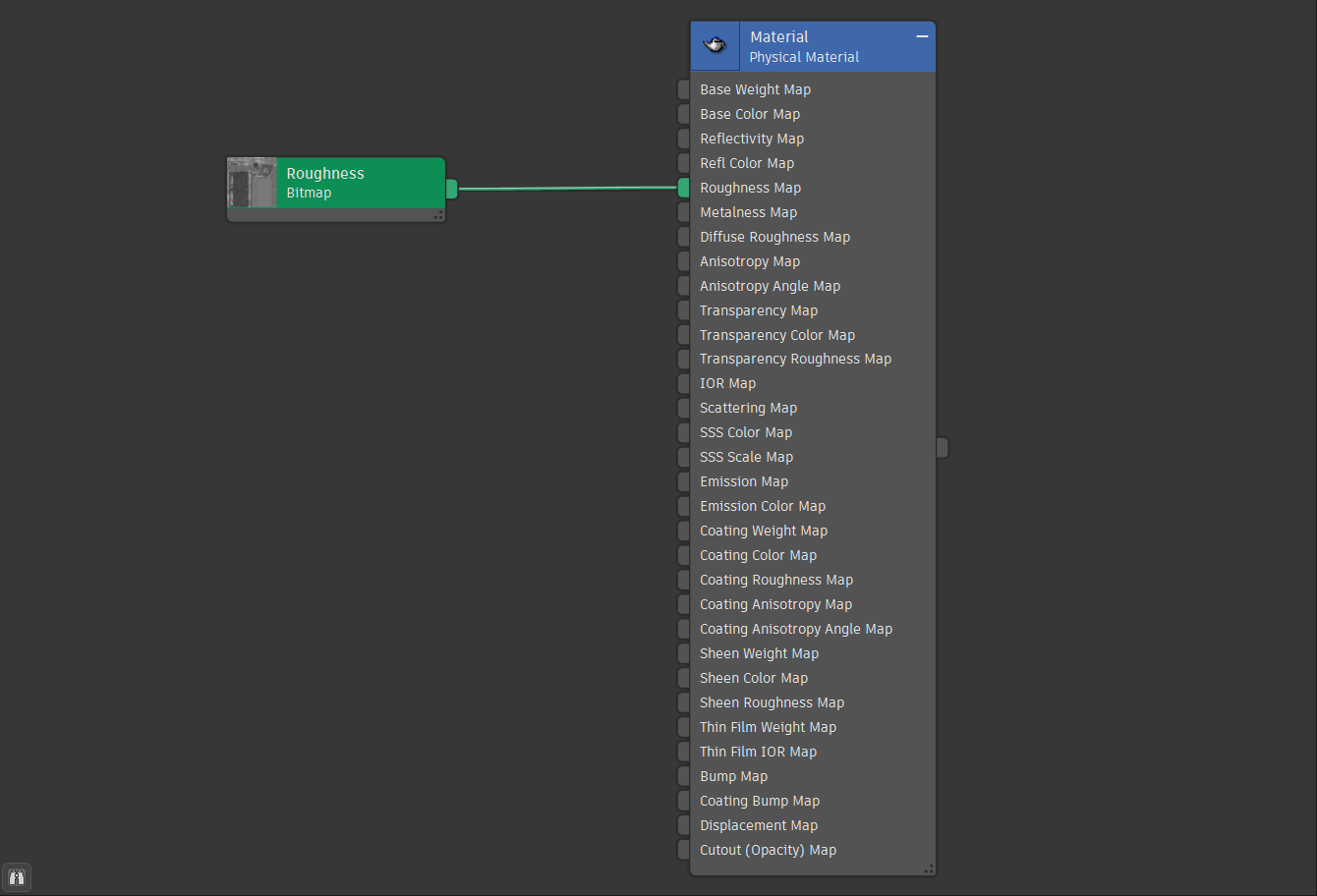

Bitmap node with a Roughness texture connected directly to the material Roughness map input slot.Physical_Material_R.png


Metalness

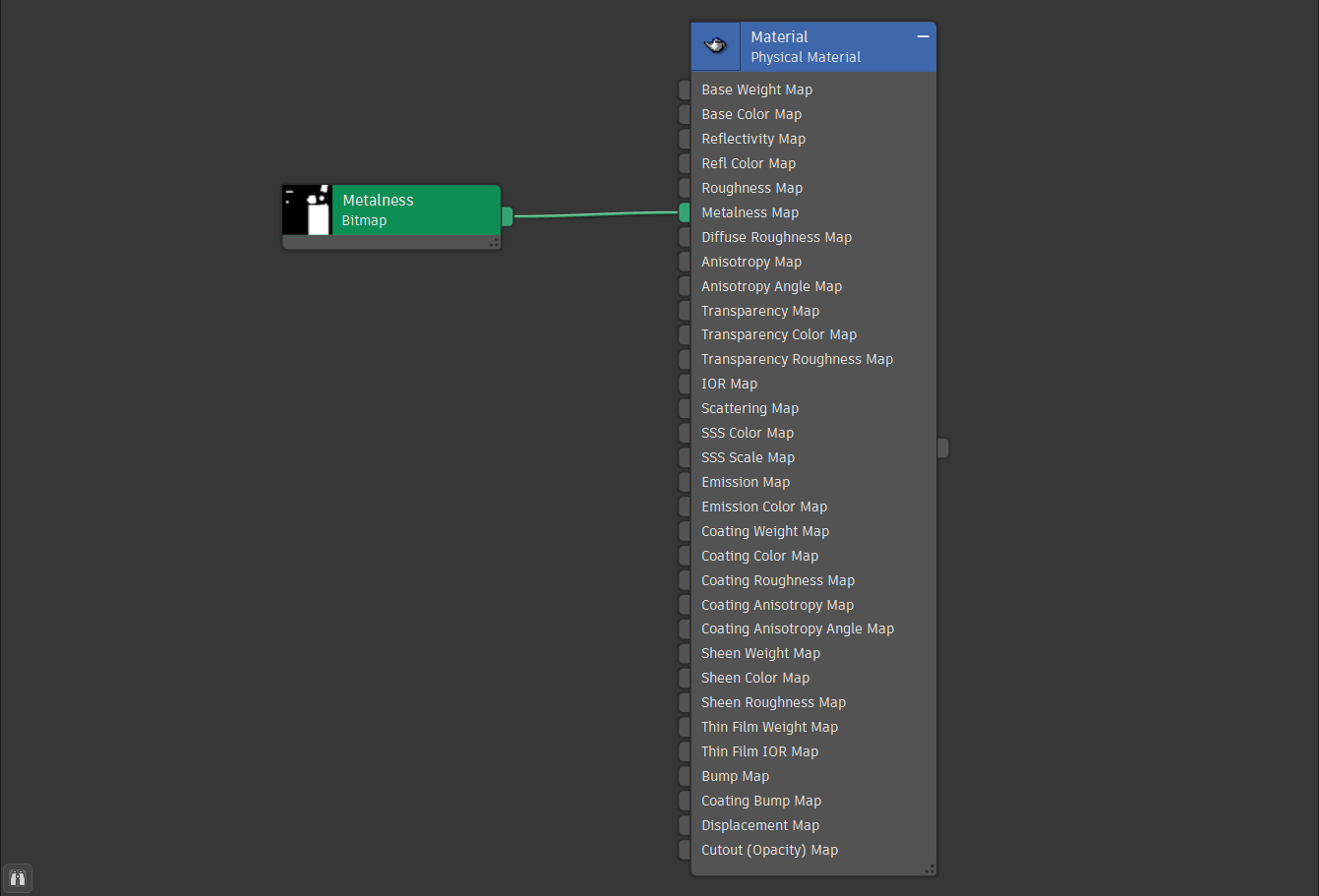

Bitmap node with a Metalness texture connected directly to the material Metalness map input slot.Physical_Material_M.png


Normal

Option 1

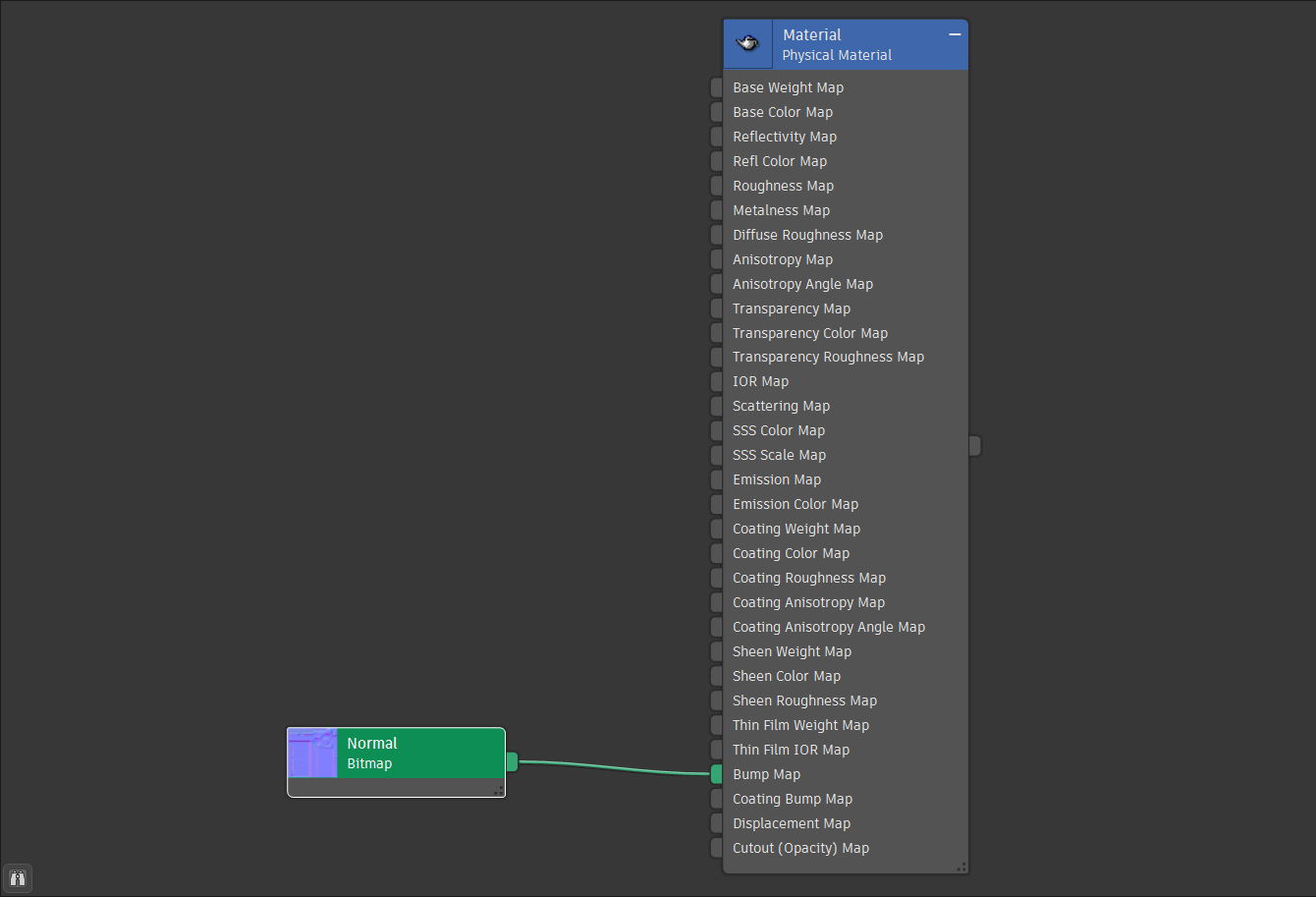

Bitmap node with a Normal texture connected directly to the material Bump map input slot.Physical_Material_N_1.png

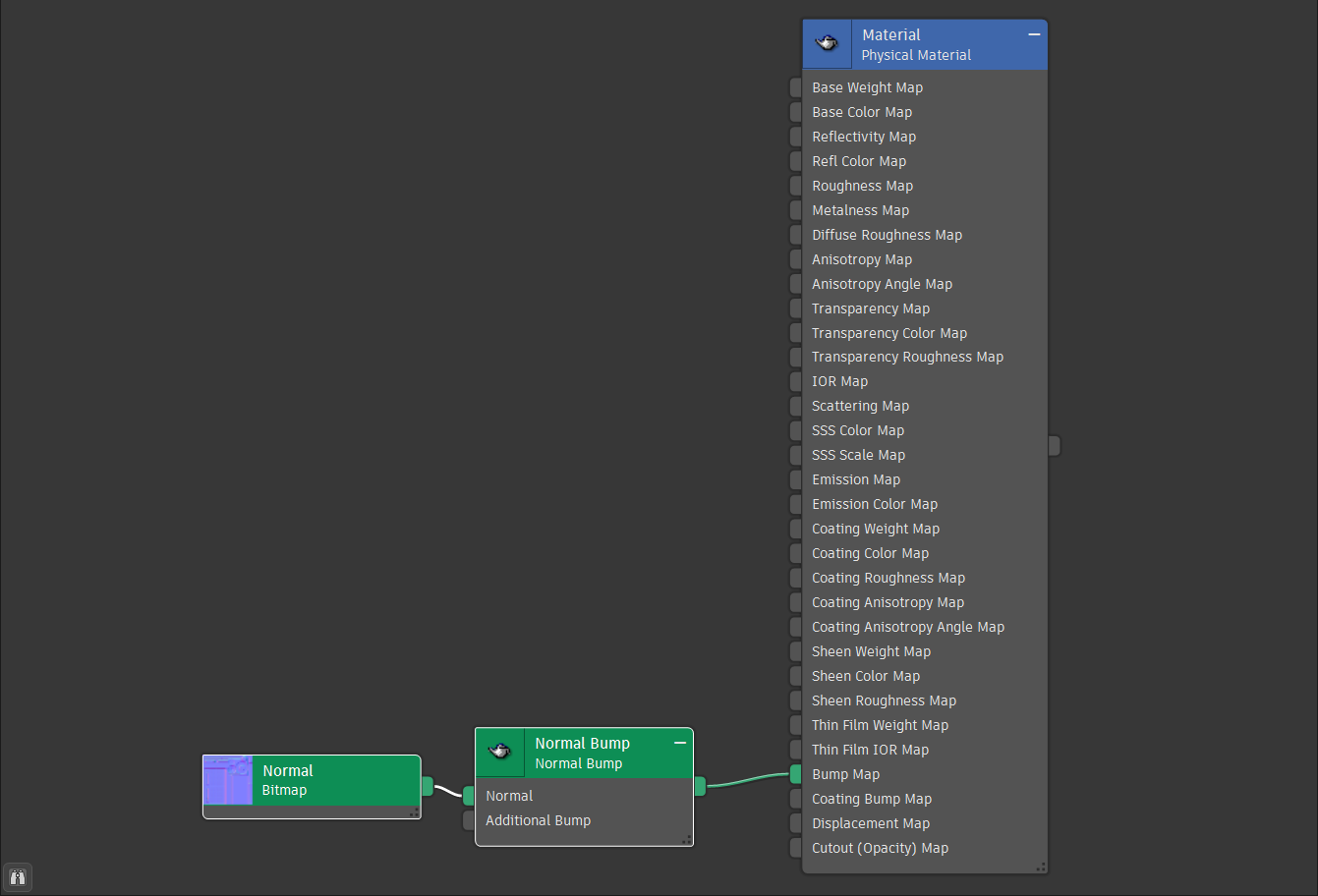

Option 2
Bitmap node with a Normal texture connected to the Normal Bump node which is connected to the material Bump map input slot.

Normal map type (DirectX, OpenGL)
  • If Normal map file name has DirectX or OpenGL suffix then Normal type will be set for the collected textures accordingly to the suffix.
  • If Normal map does not have suffix with Normal type then Normal type will not be set.

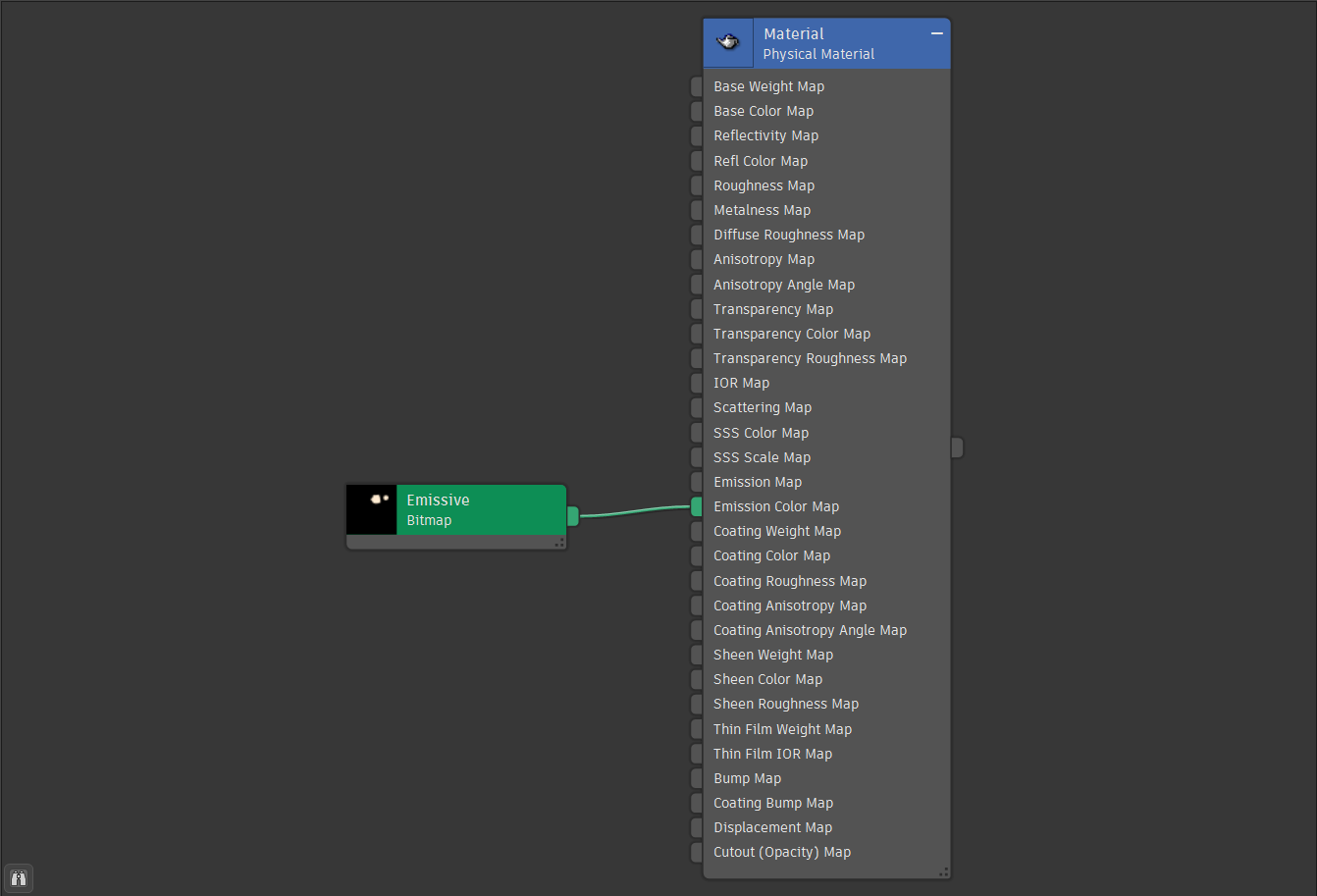

Emissive

Bitmap node with an Emissive texture connected directly to the material Emission Color map input slot.


AO

Option 1

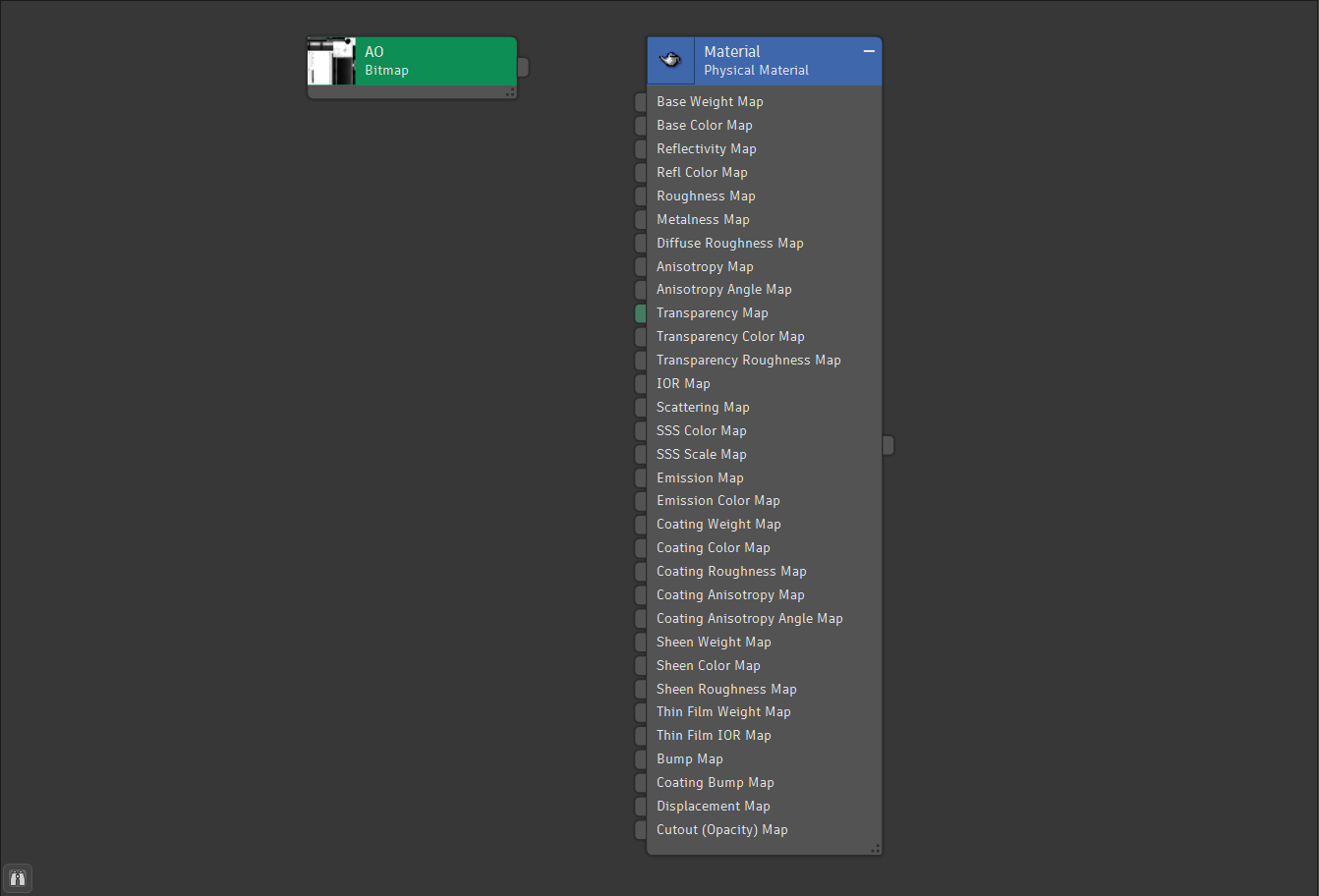

Unconnected Bitmap node with an AO texture matching one of the naming patterns in case scene has only one material.

AO texture file name patterns (Case insensitive):
  • {texture_name}_AO.{file_extension}
  • {texture_name}_AmbientOcclusion.{file_extension}
  • {texture_name}_Ambient_Occlusion.{file_extension}
  • {texture_name}_Occlusion.{file_extension}

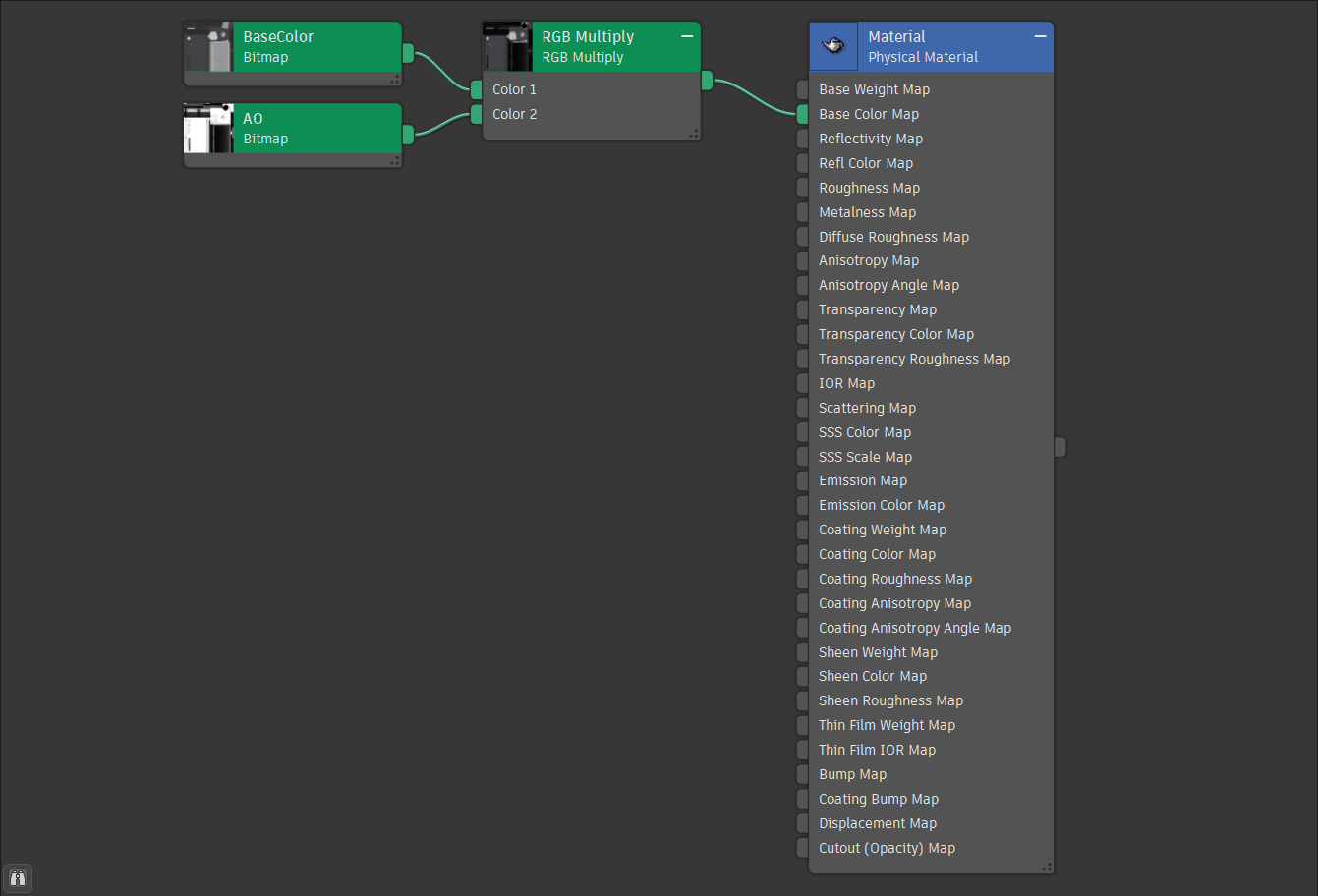

Option 2
Bitmap nodes with an AO and BaseColor textures connected to the RGB Multiply node which is connected to the material Base Color map input slot. AO texture file name should match one of the naming patterns.

AO texture file name patterns (Case insensitive):
  • {texture_name}_AO.{file_extension}
  • {texture_name}_AmbientOcclusion.{file_extension}
  • {texture_name}_Ambient_Occlusion.{file_extension}
  • {texture_name}_Occlusion.{file_extension}


Option 3

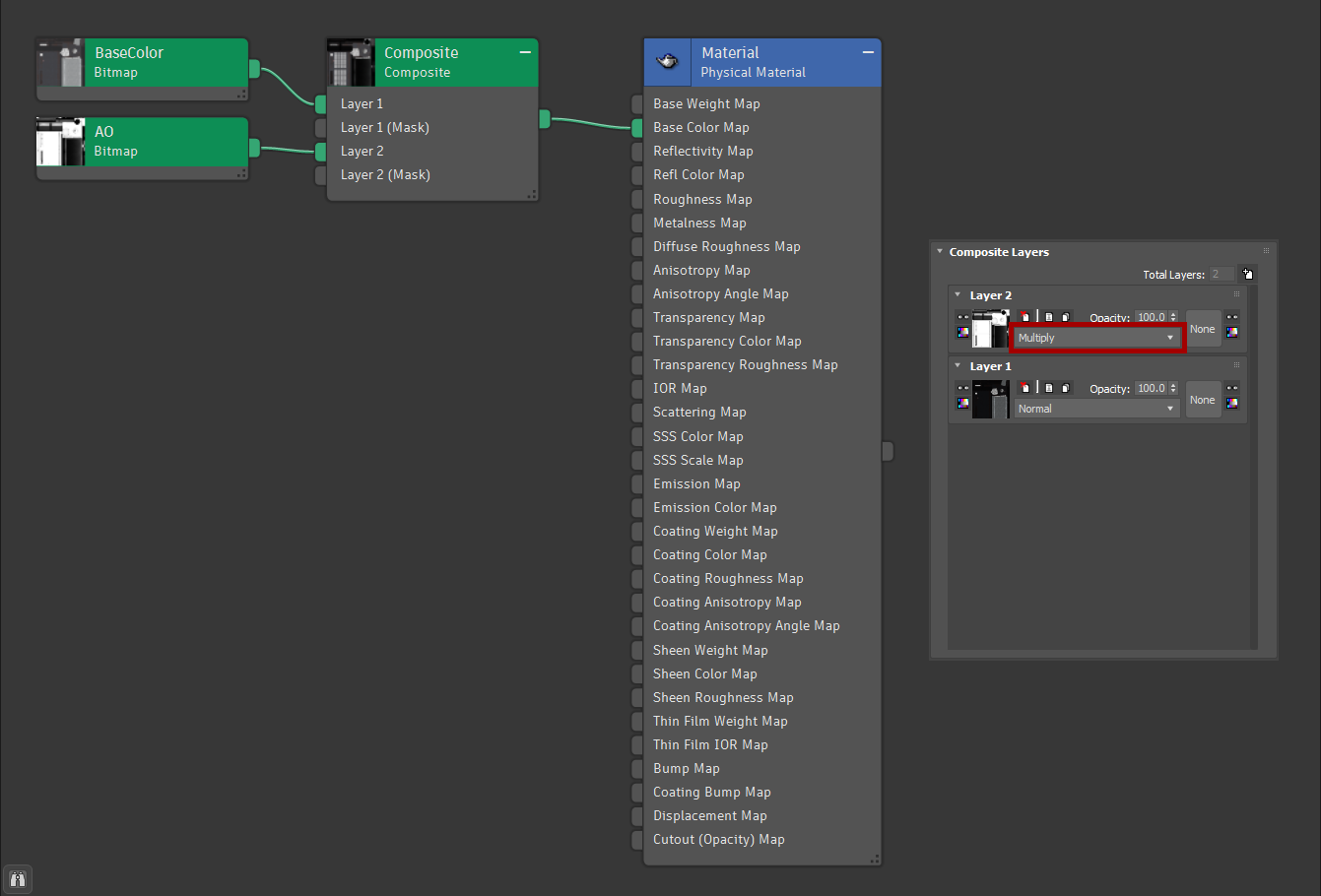

Bitmap nodes with an AO and BaseColor textures connected to the Composite node which is connected to the material Base Color map input slot.

  • BaseColor connected to the Composite Layer 1 input slot.
  • AO connected to the Composite Layer 2 input slot. Layer 2 blend mode set as Multiply.

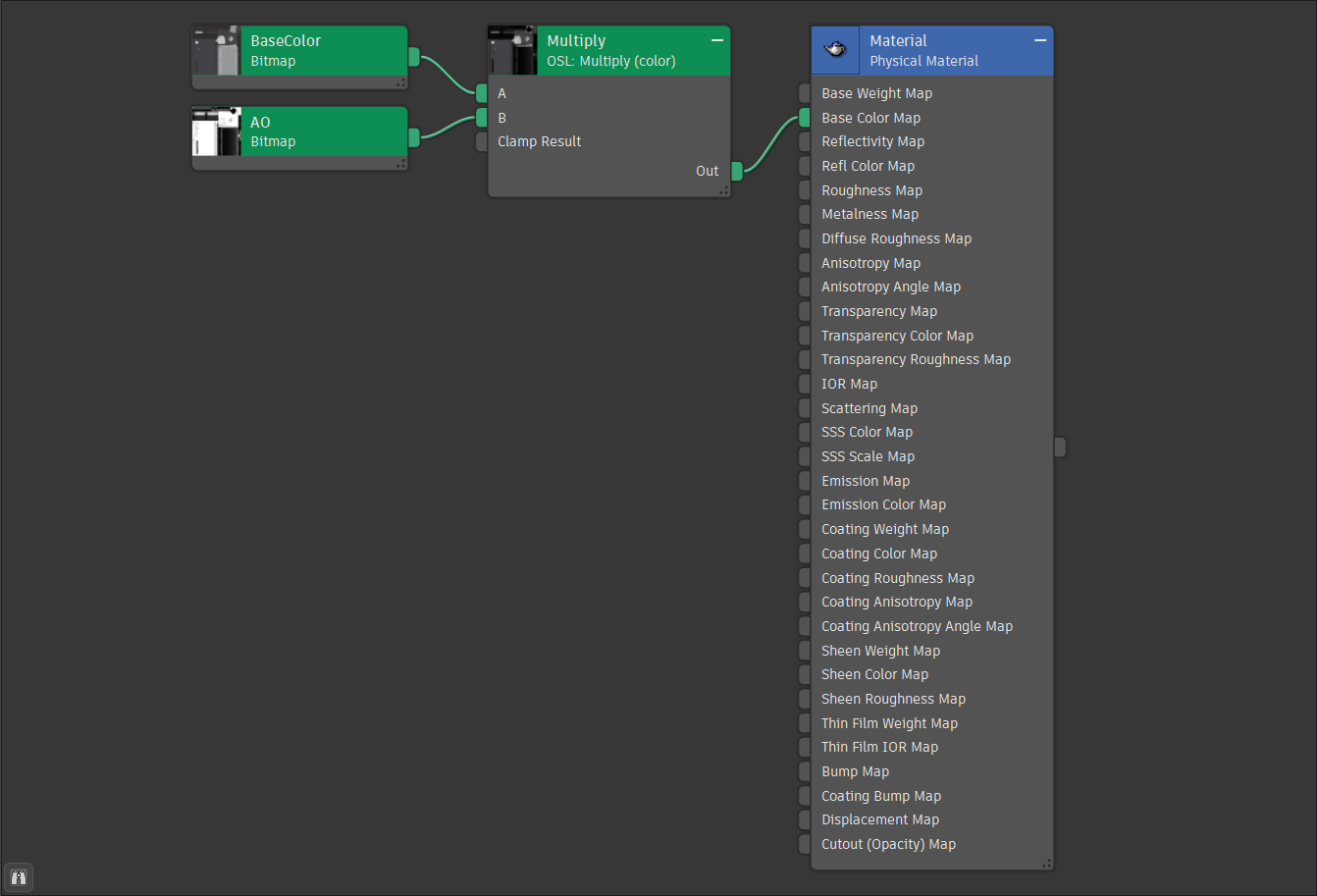

Option 4
Bitmap nodes with an AO and BaseColor textures connected to the OSL Multiply(color) node which is connected to the material Base Color map input slot. AO texture file name should match one of the naming patterns.

AO texture file name patterns (Case insensitive):
  • {texture_name}_AO.{file_extension}
  • {texture_name}_AmbientOcclusion.{file_extension}
  • {texture_name}_Ambient_Occlusion.{file_extension}
  • {texture_name}_Occlusion.{file_extension}


Option 5

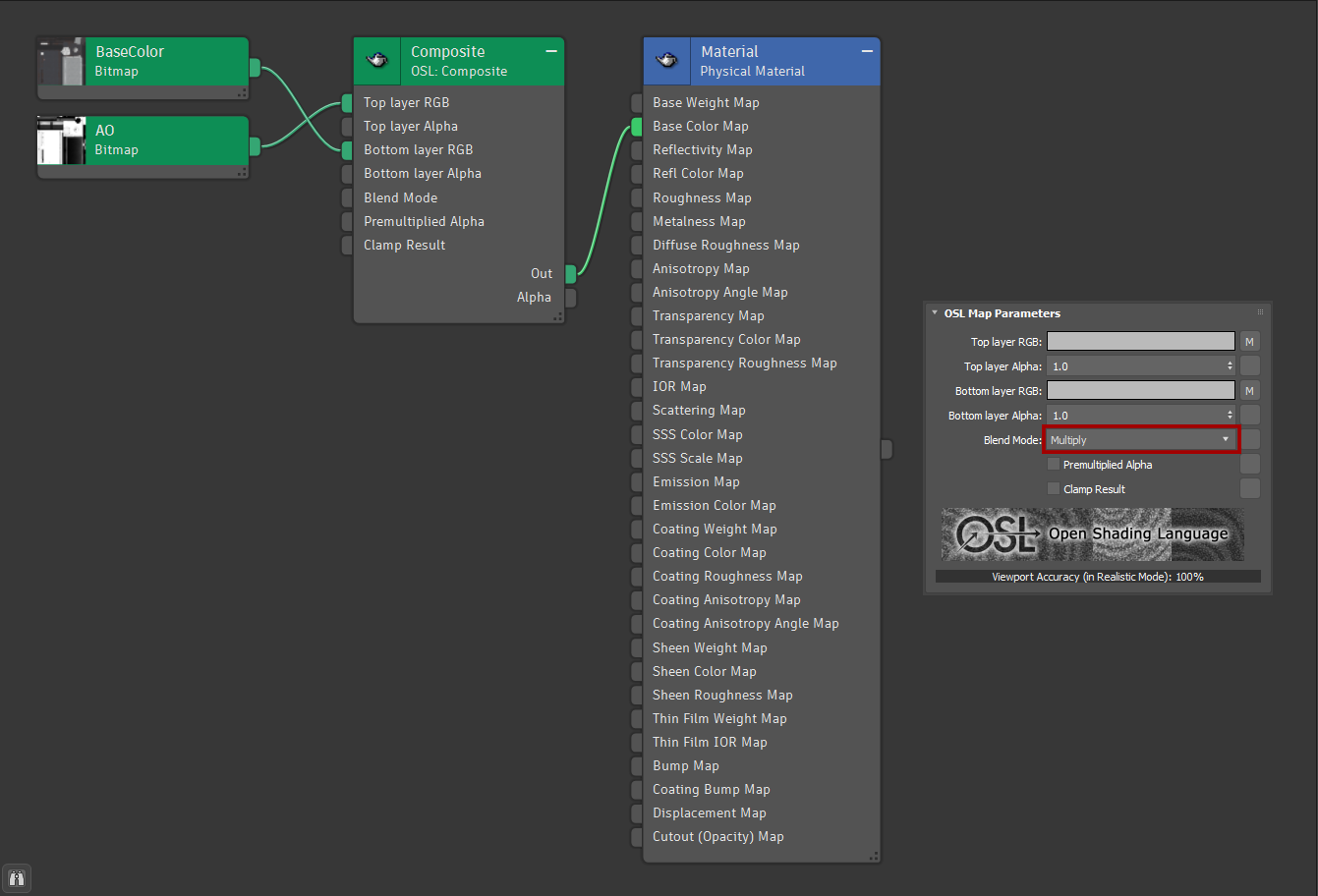

Bitmap nodes with an AO and BaseColor textures connected to the OSL Composite node which is connected to the material Base Color map input slot.

  • BaseColor connected to the OSL Composite Bottom layer RGB input slot.
  • AO connected to the OSL Composite Top layer RGB input slot. Blend mode set as Multiply.

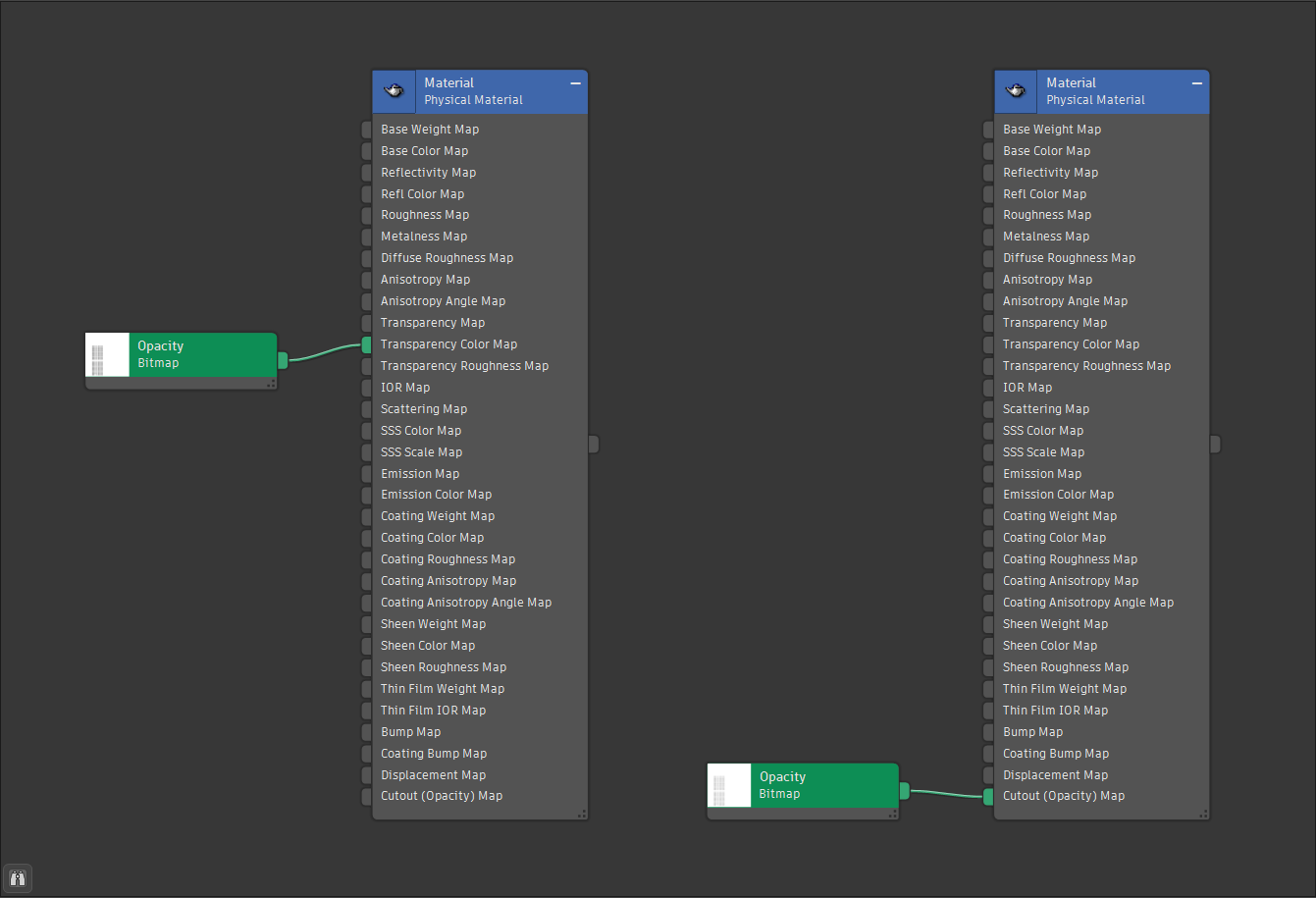

Opacity

Option 1
Bitmap node with an Opacity texture connected directly to the material Transparency Color map or Cutout (Opacity) map input slots.

Option 2
If BaseColor texture has an Opacity map in the alpha channel, then:

  • OSL Bitmap Lookup map should be used to load a texture with an alpha channel.
  • RGB output should be connected to the material Base Color map input slot.
  • Alpha output should be connected to the material Transparency Color map or Cutout (Opacity) map input slots.


Option 3

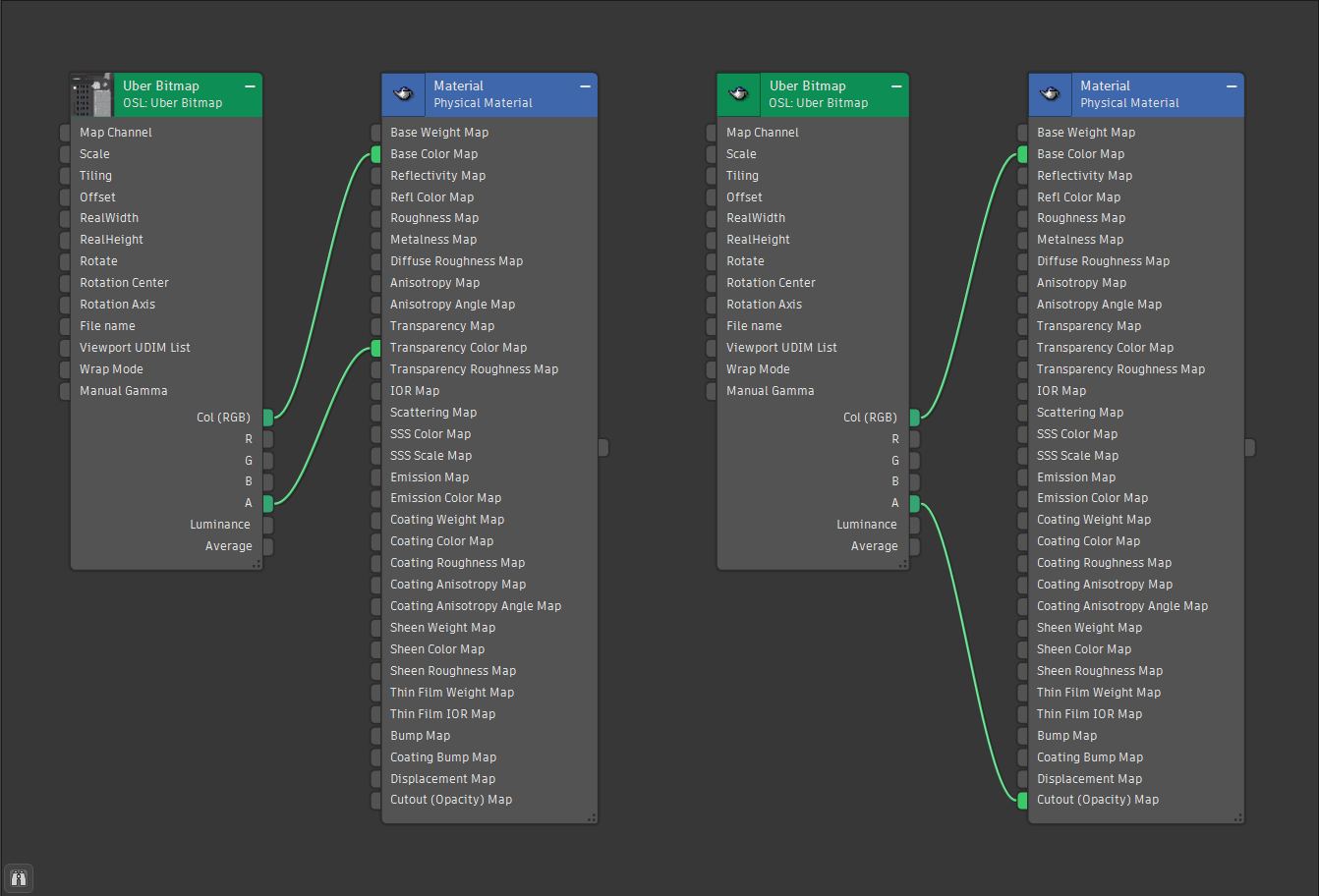

If BaseColor texture has an Opacity map in the alpha channel, then:

  • OSL Uber Bitmap map should be used to load a texture with an alpha channel.
  • RGB output should be connected to the material Base Color map input slot.
  • Alpha output should be connected to the material Transparency Color map or Cutout (Opacity) map input slots.

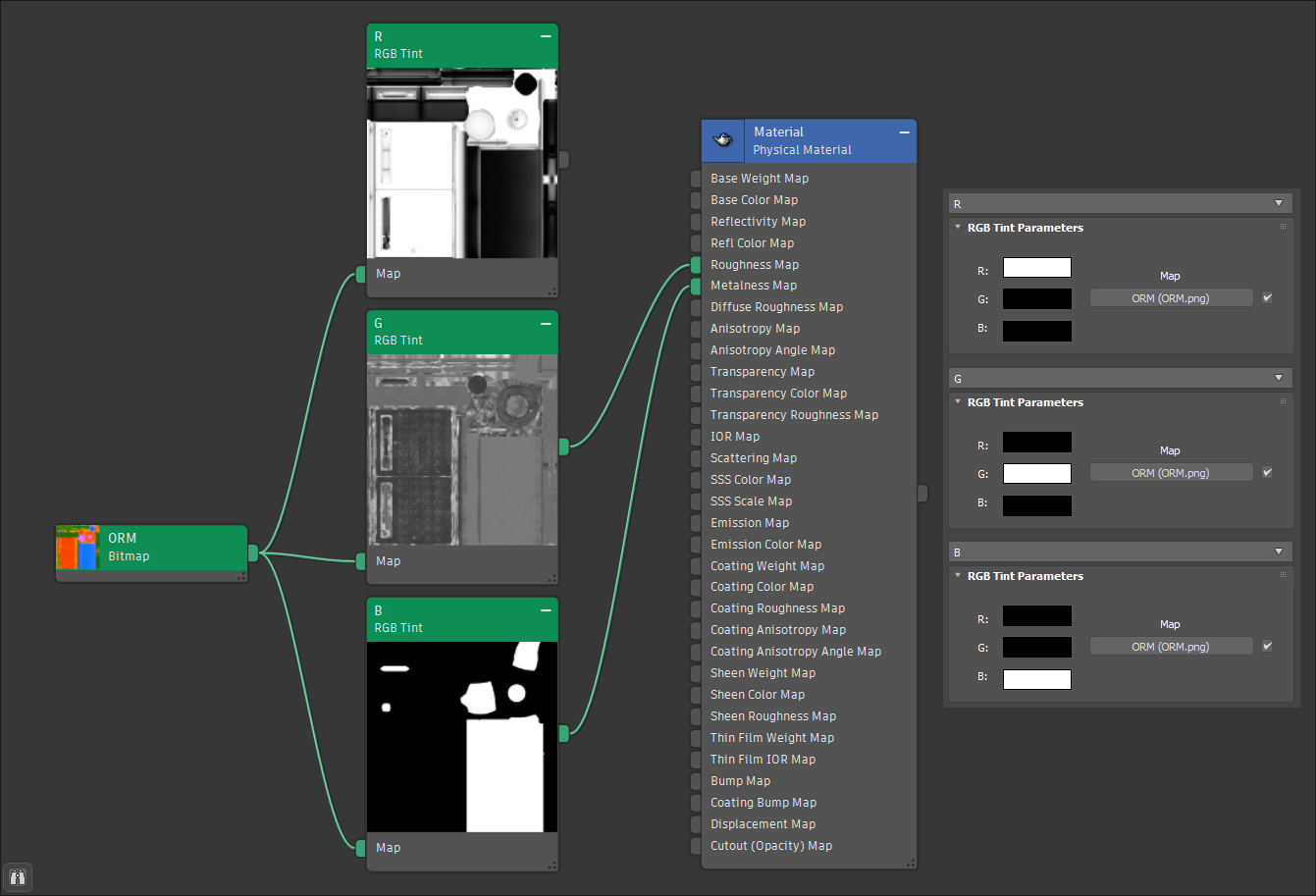

ORM

Option 1
RGB Tint maps should be used to separate texture RGB channels. To extract required channel from the texture, color for required channel in RGB Tint map should be set as white, for other channels it should be black.

  • RGB Tint map which represents AO should be connected to the material in the same way as separate AO texture.  AO Setup
  • RGB Tint map which represents Roughness should be connected directly to the material Roughness map input slot.
  • RGB Tint map which represents Metalness should be connected directly to the material Metalness map input slot.


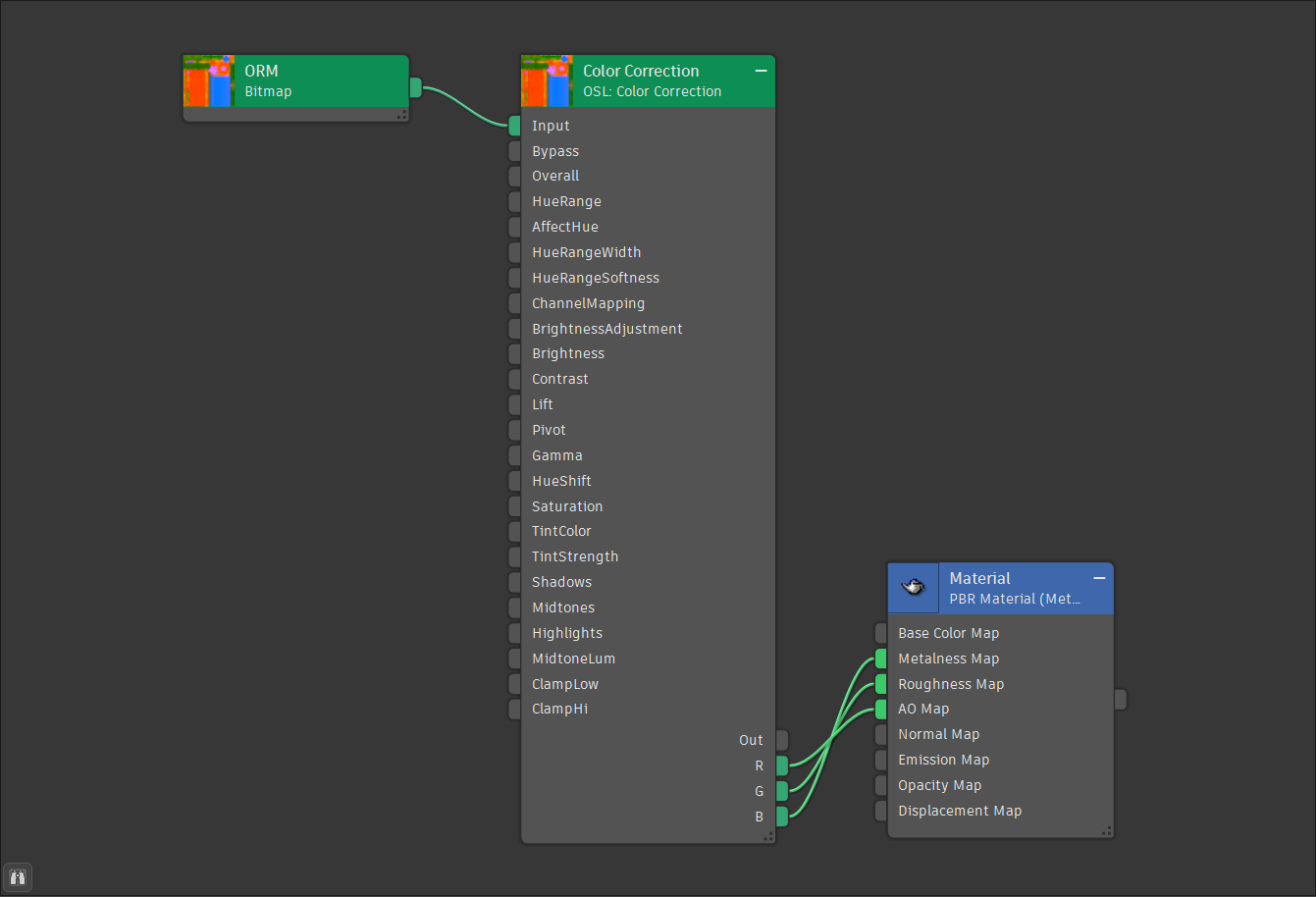

Option 2

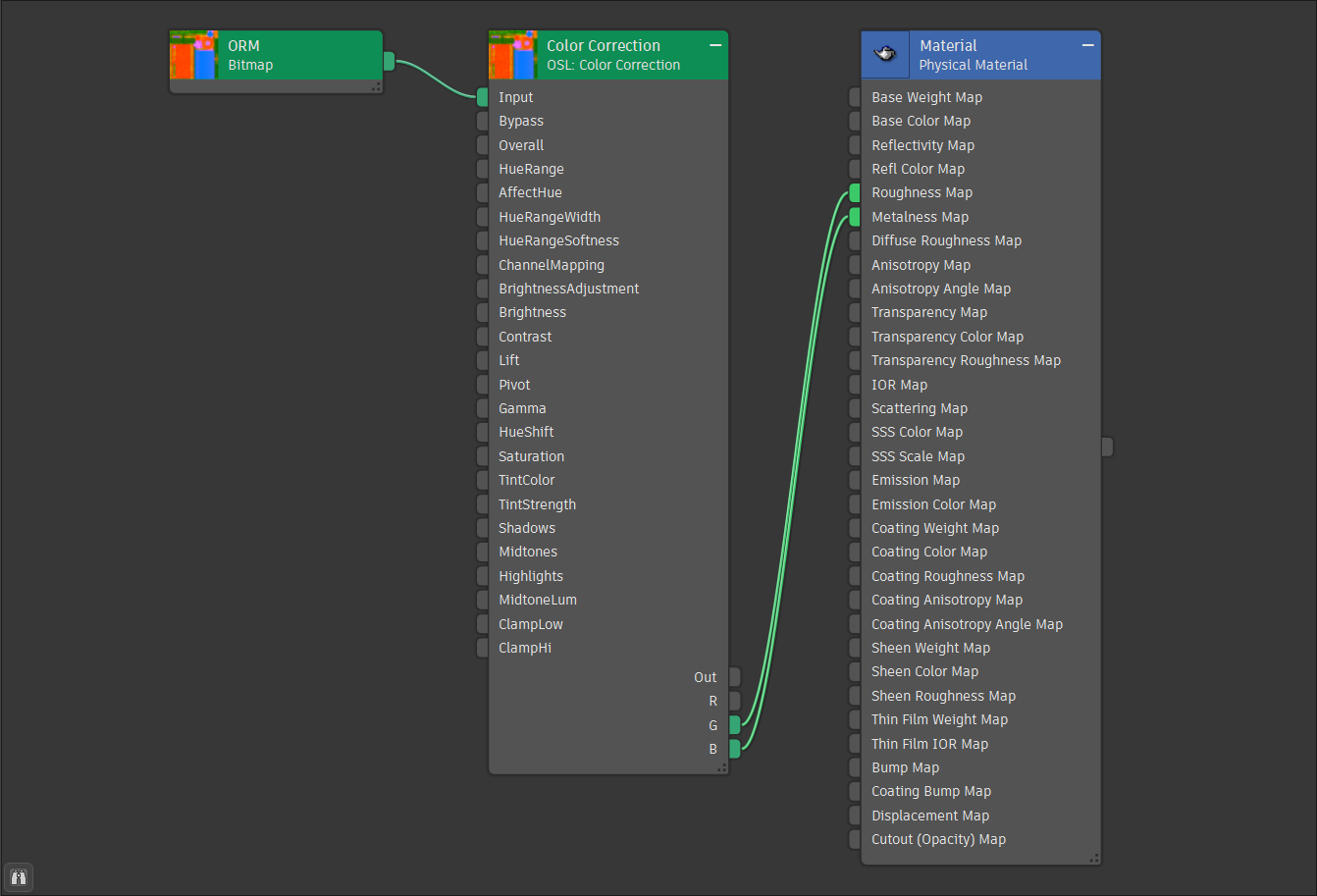

OSL Color Correction map should be used to separate texture RGB channels.

  • Red output channel connected to the material in the same way as separate AO texture. AO Setup
  • Green output channel connected directly to the material Roughness map input slot.
  • Blue output channel connected directly to the material Metalness map input slot.

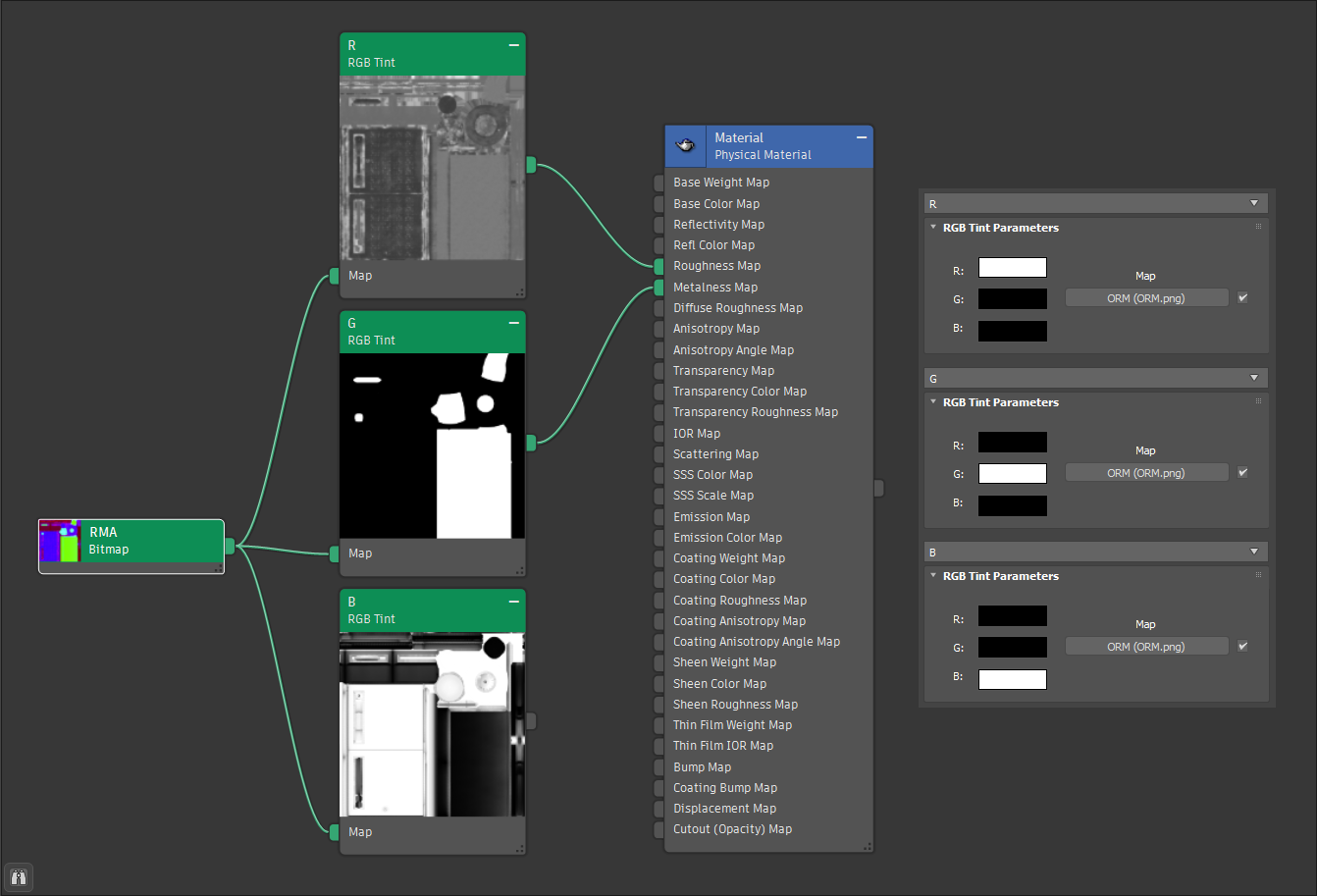

RMA

Option 1
RGB Tint maps should be used to separate texture RGB channels. To extract required channel from the texture, color for required channel in RGB Tint map should be set as white, for other channels it should be black.

  • RGB Tint map which represents Roughness should be connected directly to the material Roughness map input slot.
  • RGB Tint map which represents Metalness should be connected directly to the material Metalness map input slot.
  • RGB Tint map which represents AO should be connected to the material in the same way as separate AO texture. AO Setup


Option 2

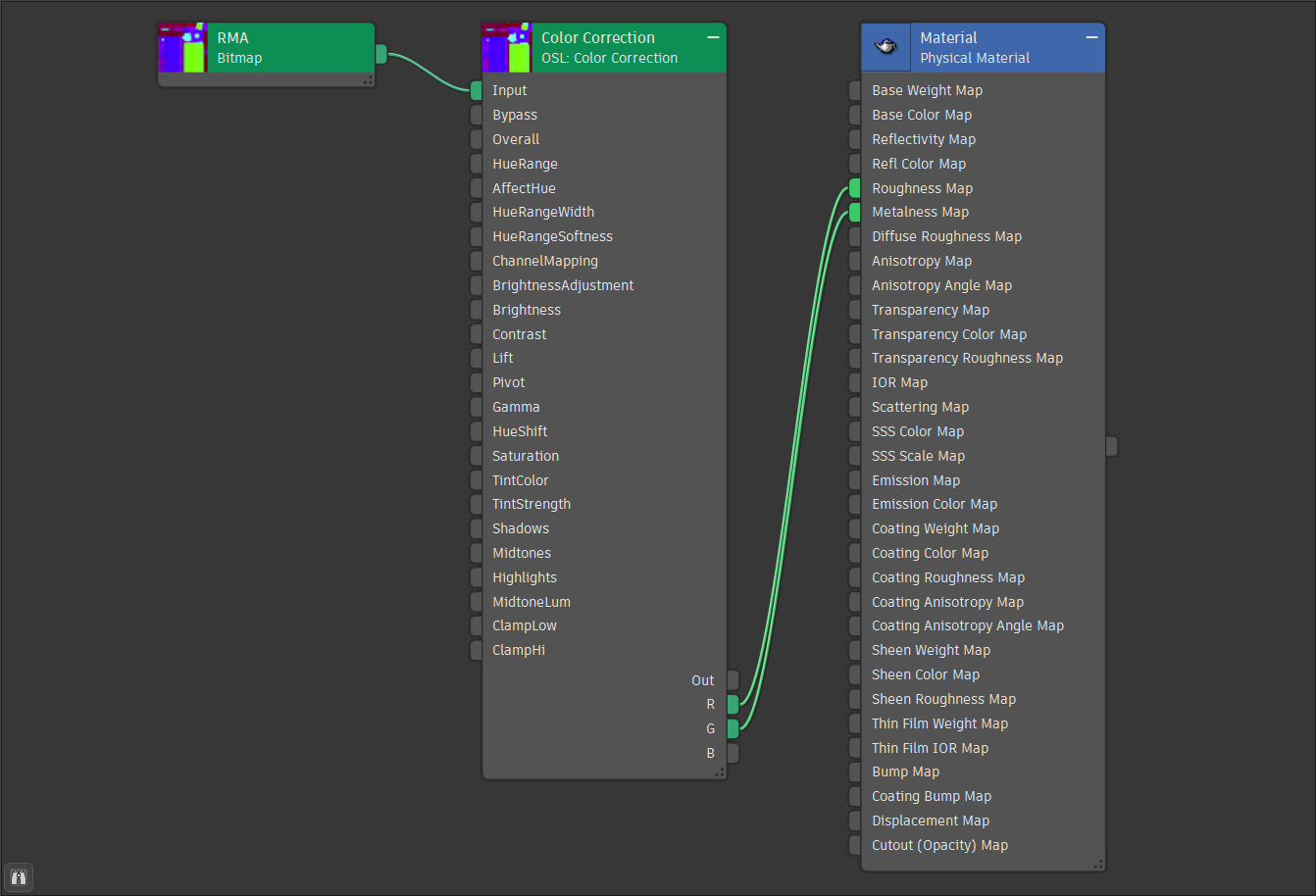

OSL Color Correction map should be used to separate texture RGB channels.

  • Red output channel connected directly to the material Roughness map input slot.
  • Green output channel connected directly to the material Metalness map input slot.
  • Blue output channel connected to the material in the same way as separate AO texture. AO Setup


Other textures

All other additional textures (SSS Color map, IOR map, etc.) connected to the material slots will be collected and renamed based on the material slot to which they are connected.

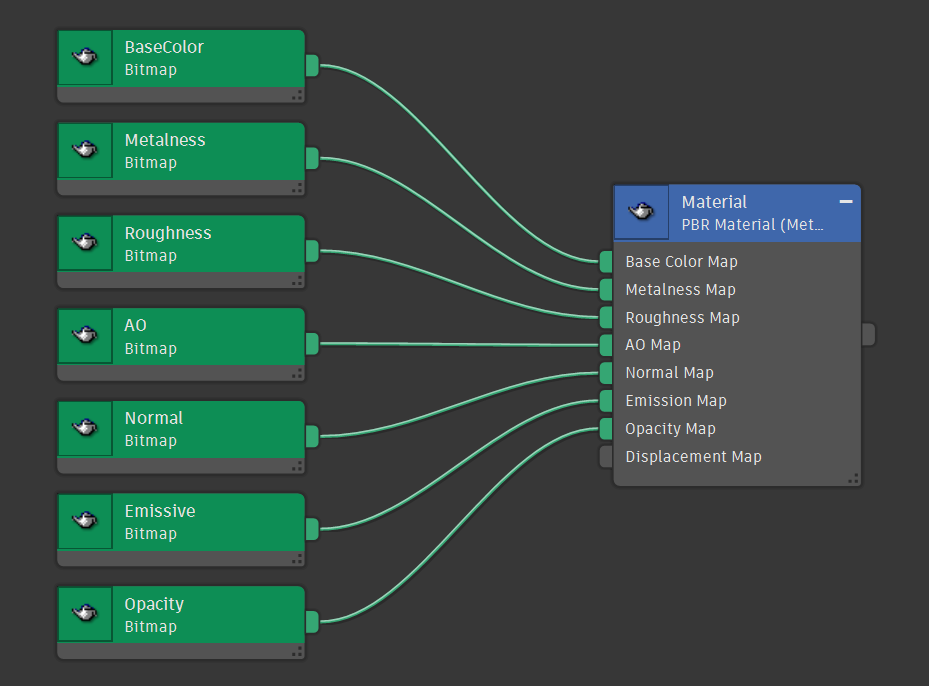

PBR Material setup


BaseColor

Option 1

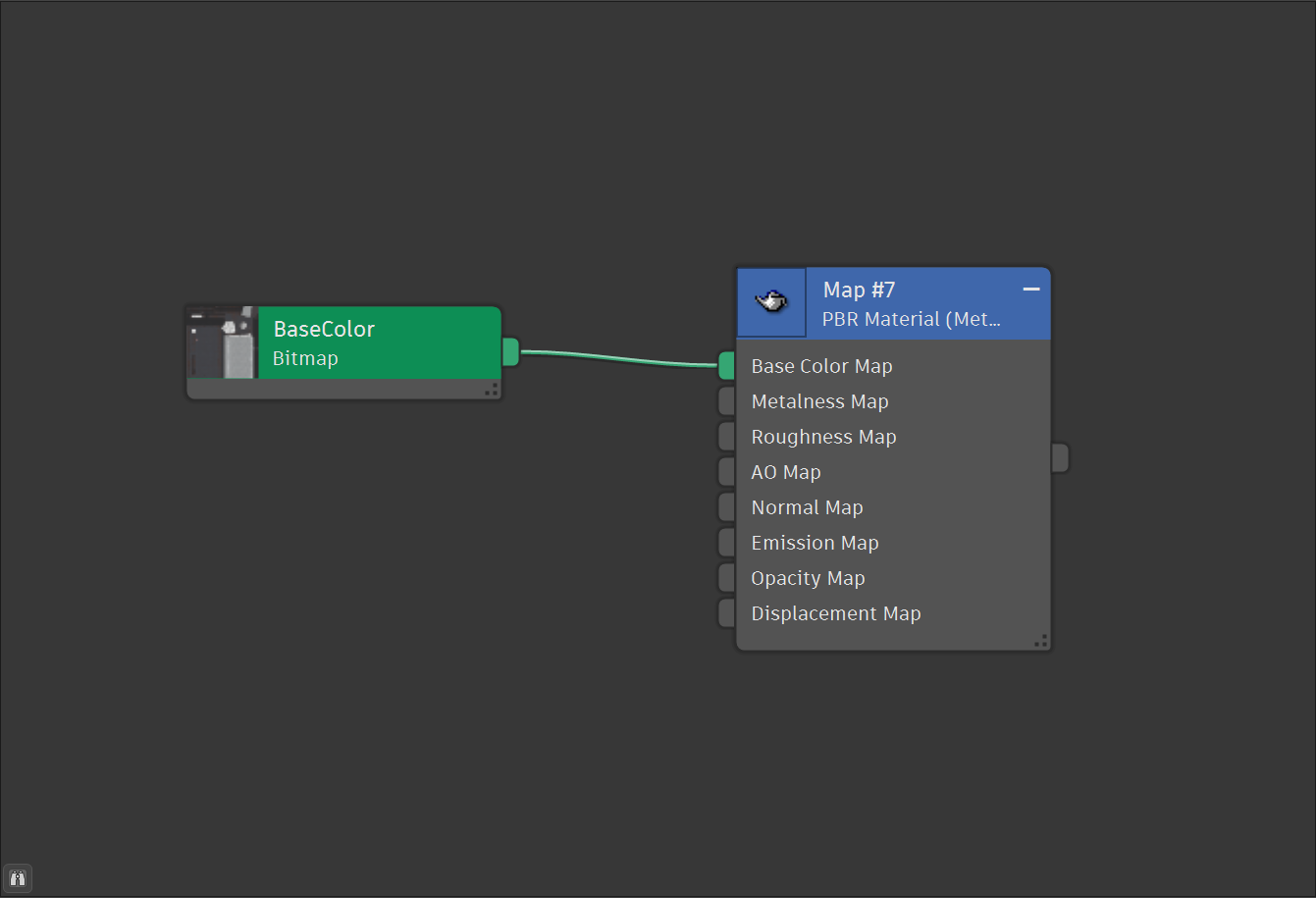

Bitmap node with a BaseColor texture connected directly to the material Base Color map input slot.

Option 2

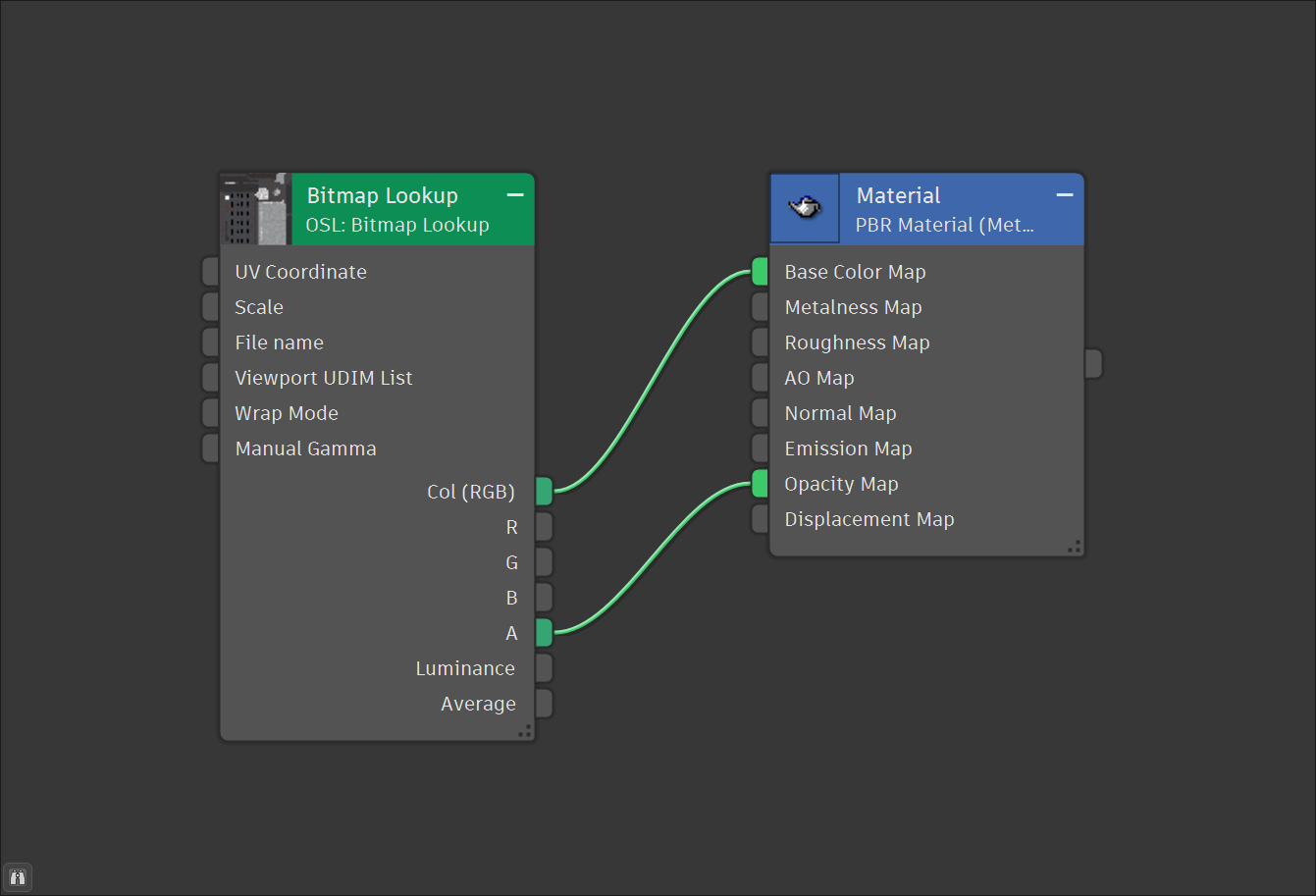

If BaseColor texture has an Opacity map in the alpha channel, then:

  • OSL Bitmap Lookup map should be used to load a texture with an alpha channel.
  • RGB output should be connected to the material Base Color map input slot.
  • Alpha output should be connected to the material Opacity map input slots.


Option 3
If BaseColor texture has an Opacity map in the alpha channel, then:

  • OSL Uber Bitmap map should be used to load a texture with an alpha channel.
  • RGB output should be connected to the material Base Color map input slot.
  • Alpha output should be connected to the material Opacity map input slots.

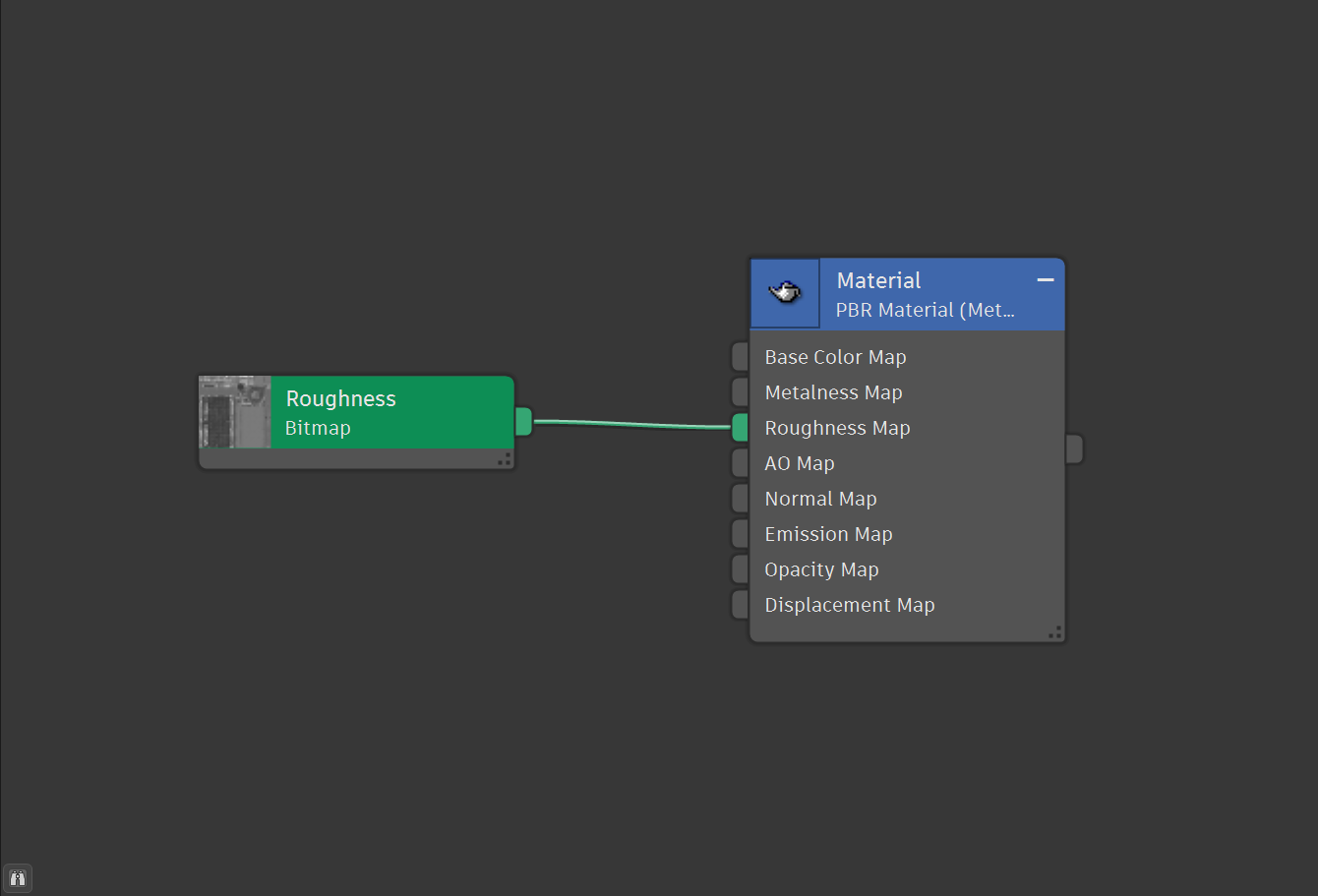

Roughness

Bitmap node with a Roughness texture connected directly to the material Roughness map input slot.


Metalness

Bitmap node with a Metalness texture connected directly to the material Metalness map input slot.


Normal

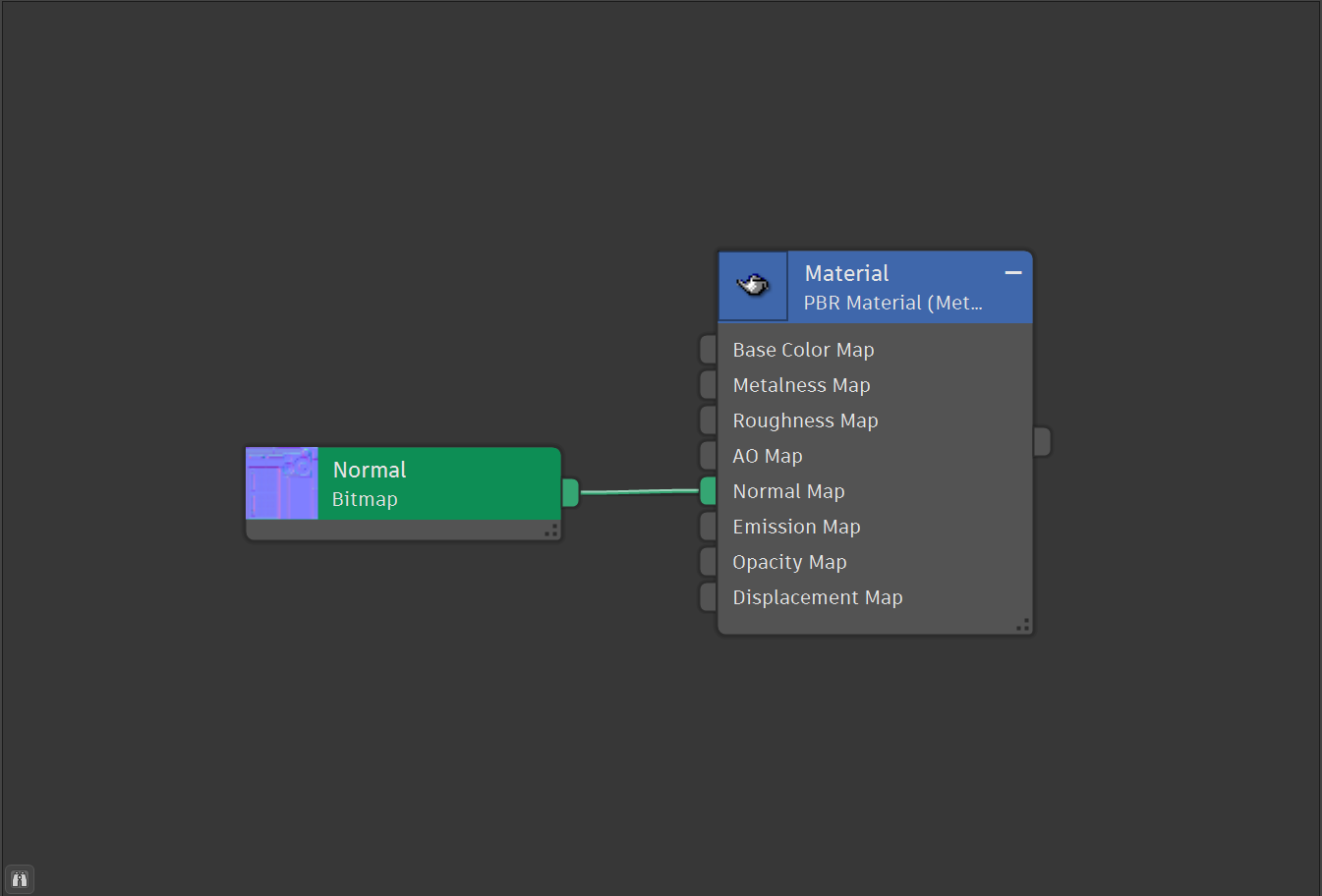

Option 1
Bitmap node with a Normal texture connected directly to the material Normal map input slot.

Option 2

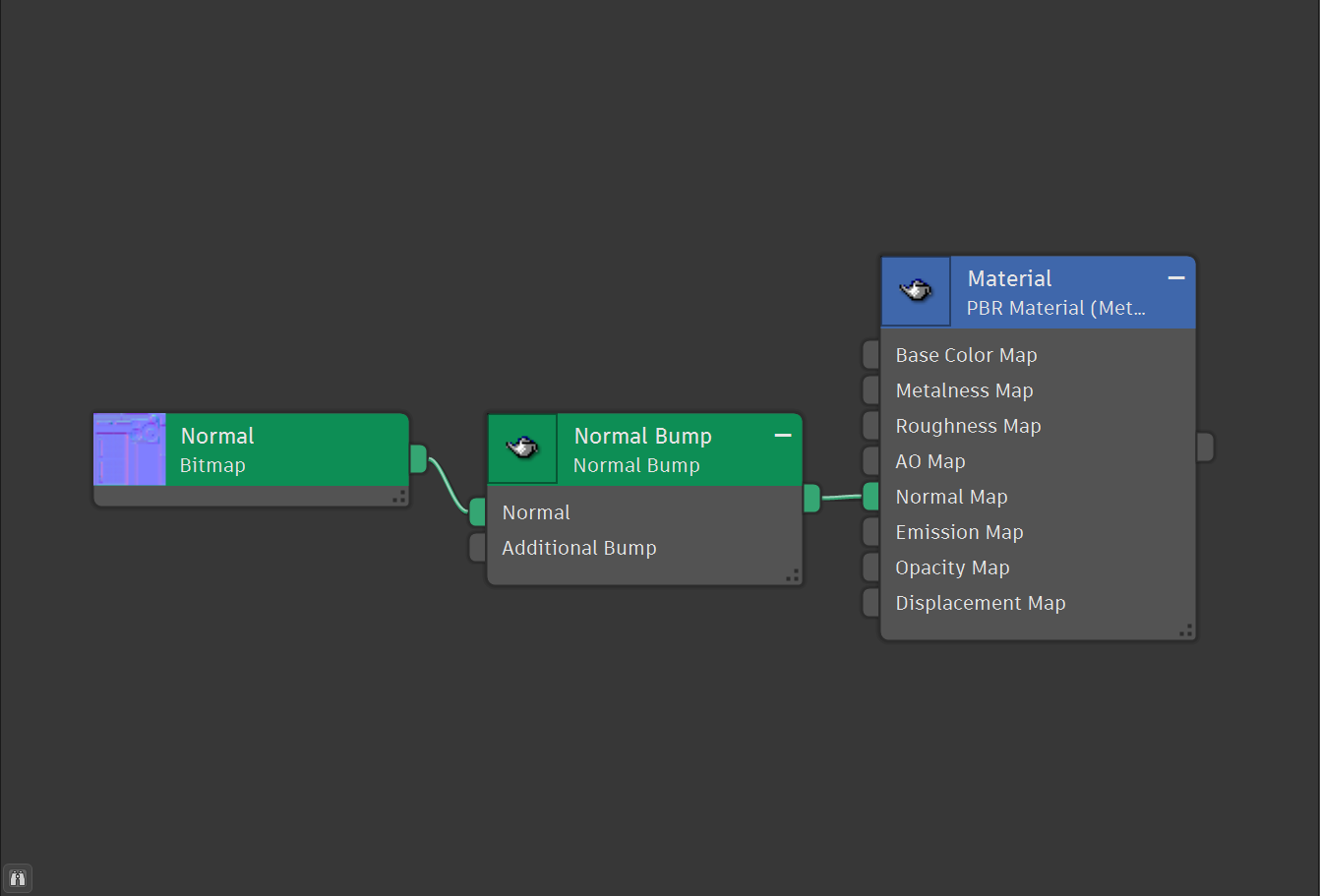

Bitmap node with a Normal texture connected to the Normal Bump node which is connected to the material Normal map input slot.

Normal map type (DirectX, OpenGL)

  • If Normal map file name has DirectX or OpenGL suffix then Normal type will be set for the collected textures accordingly to the suffix.
  • If Normal map does not have suffix with Normal type then Normal type will not be set.

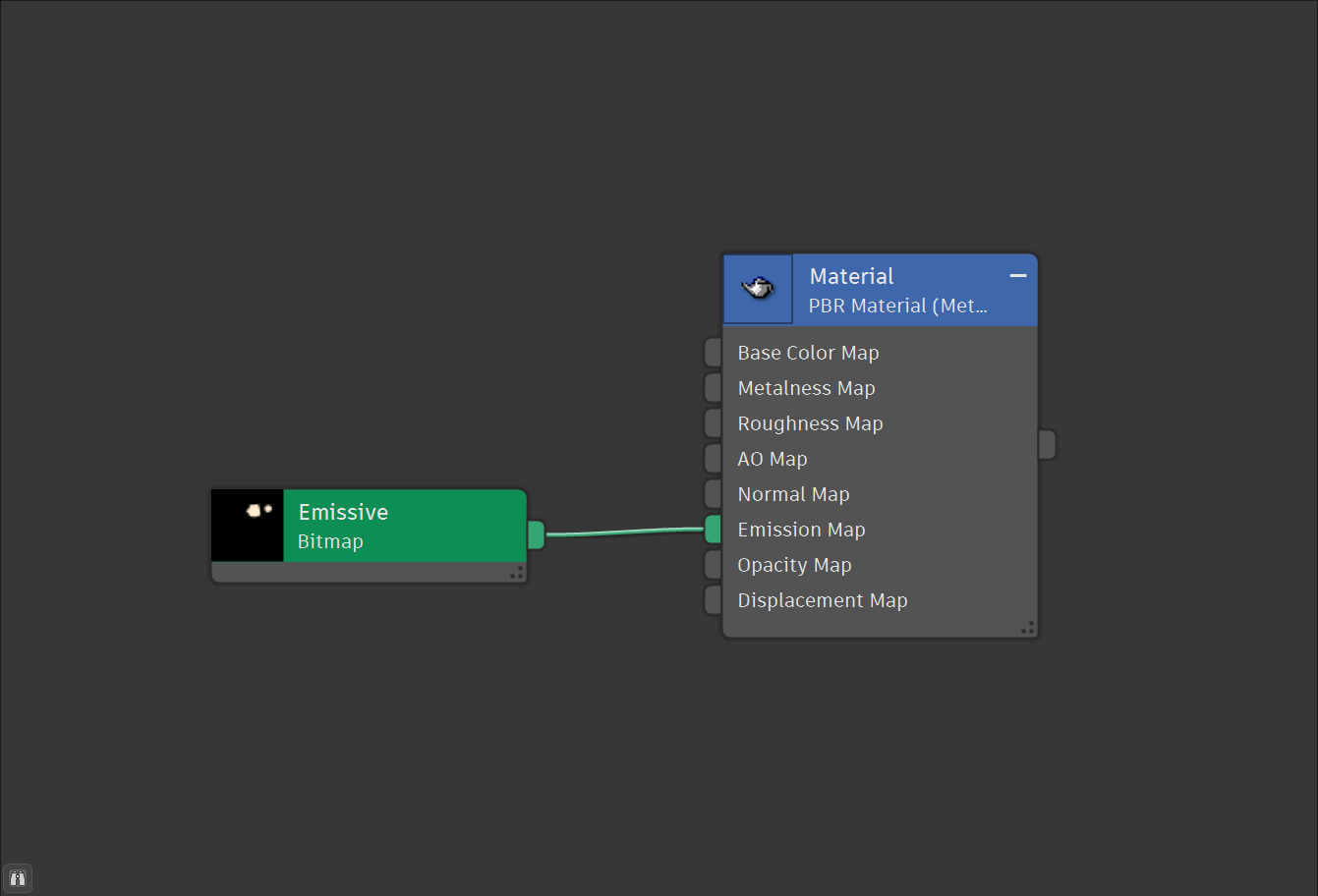

Emissive

Bitmap node with an Emissive texture connected directly to the material Emission map input slot.

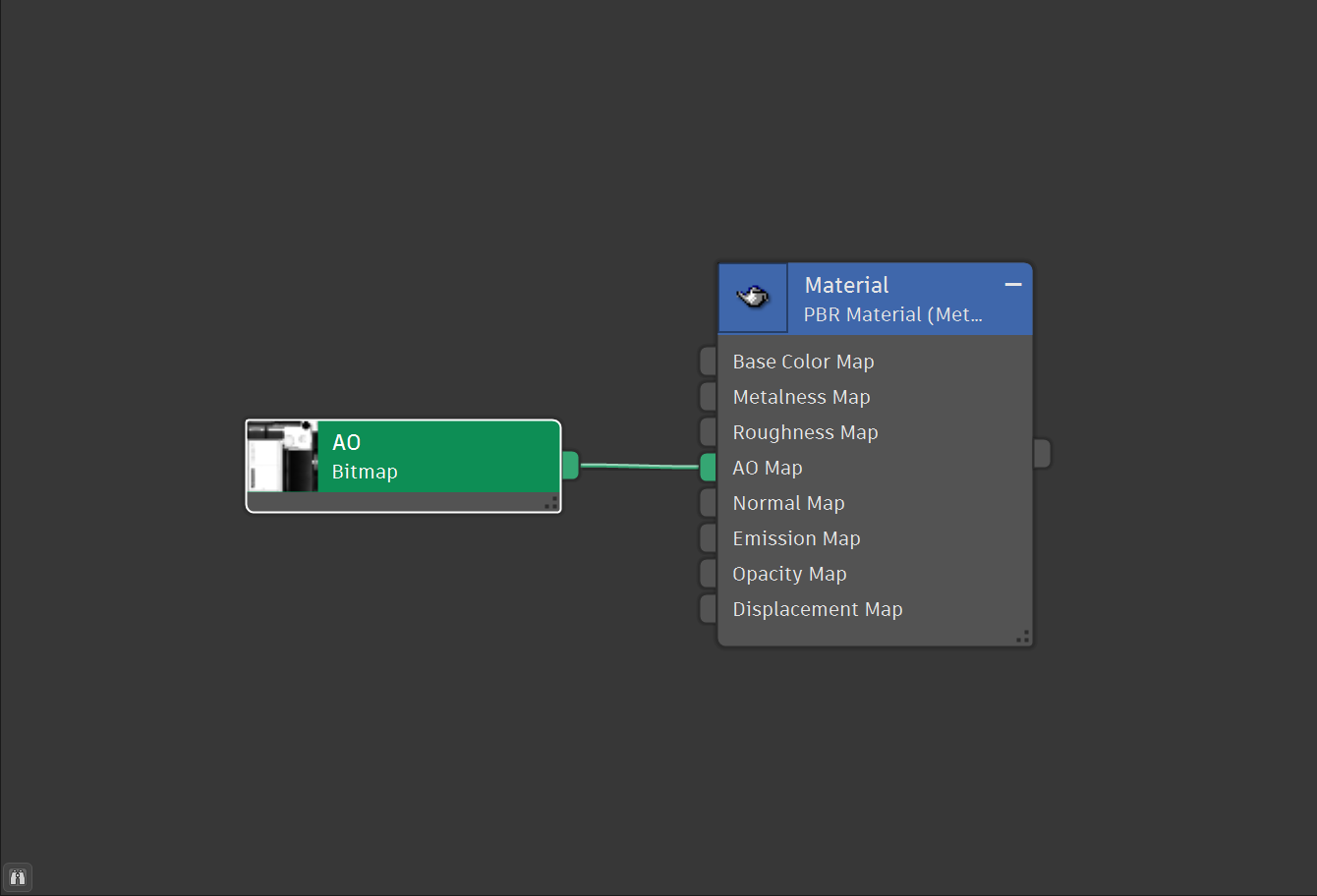

AO

Bitmap node with an AO texture connected directly to the material AO map input slot.


Opacity

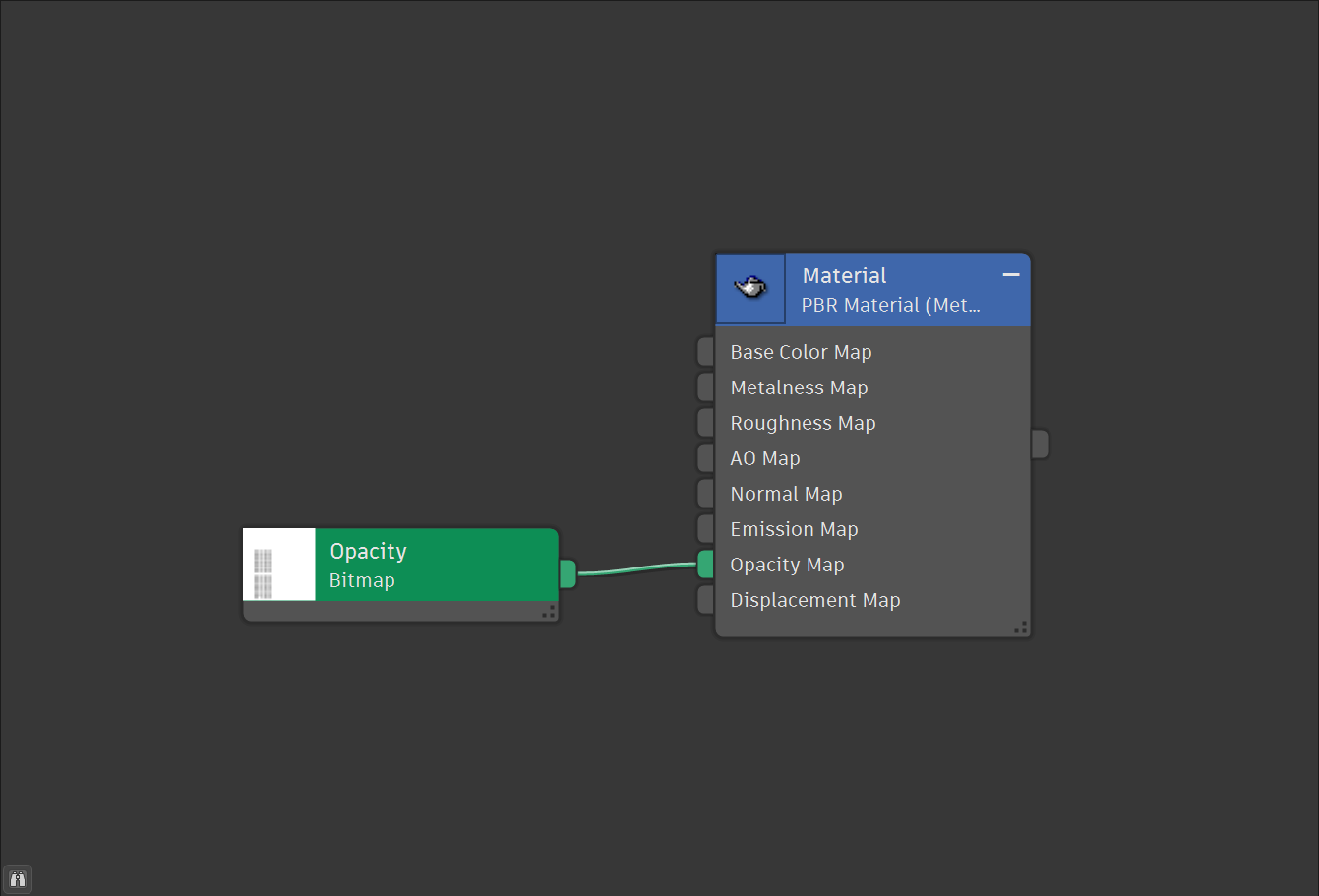

Option 1
Bitmap node with an Opacity texture connected directly to the material Opacity map input slot.

Option 2
If Opacity map is presented in the BaseColor alpha channel, then:

  • OSL Bitmap Lookup map should be used to load a texture with an alpha channel.
  • RGB output should be connected to the material Base Color map input slot.
  • Alpha output should be connected to the material Opacity map input slot.

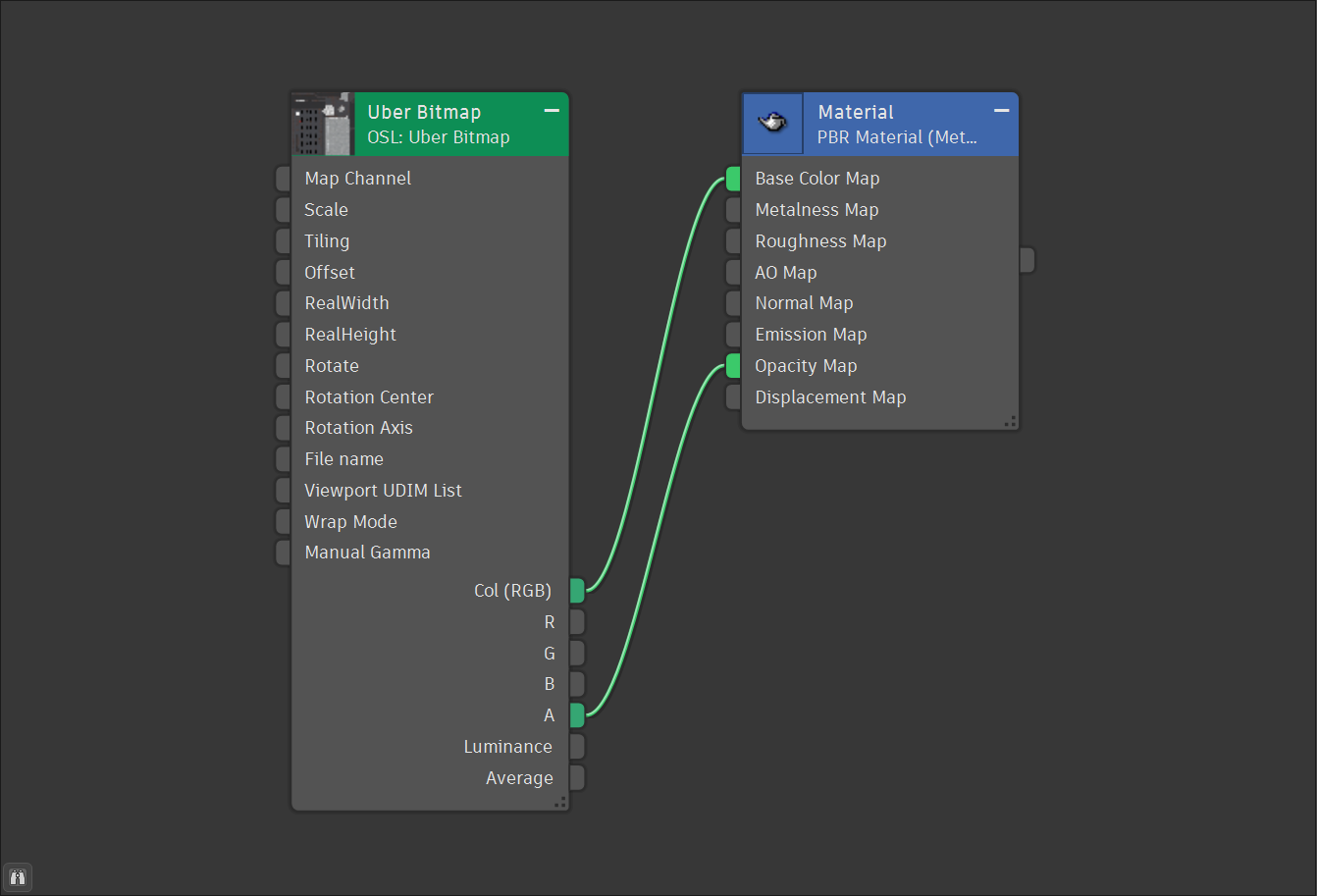

Option 3
If Opacity map is presented in the BaseColor alpha channel, then:

  • OSL Uber Bitmap map should be used to load a texture with an alpha channel.
  • RGB output should be connected to the material Base Color map input slot.
  • Alpha output should be connected to the material Opacity map input slots.


ORM

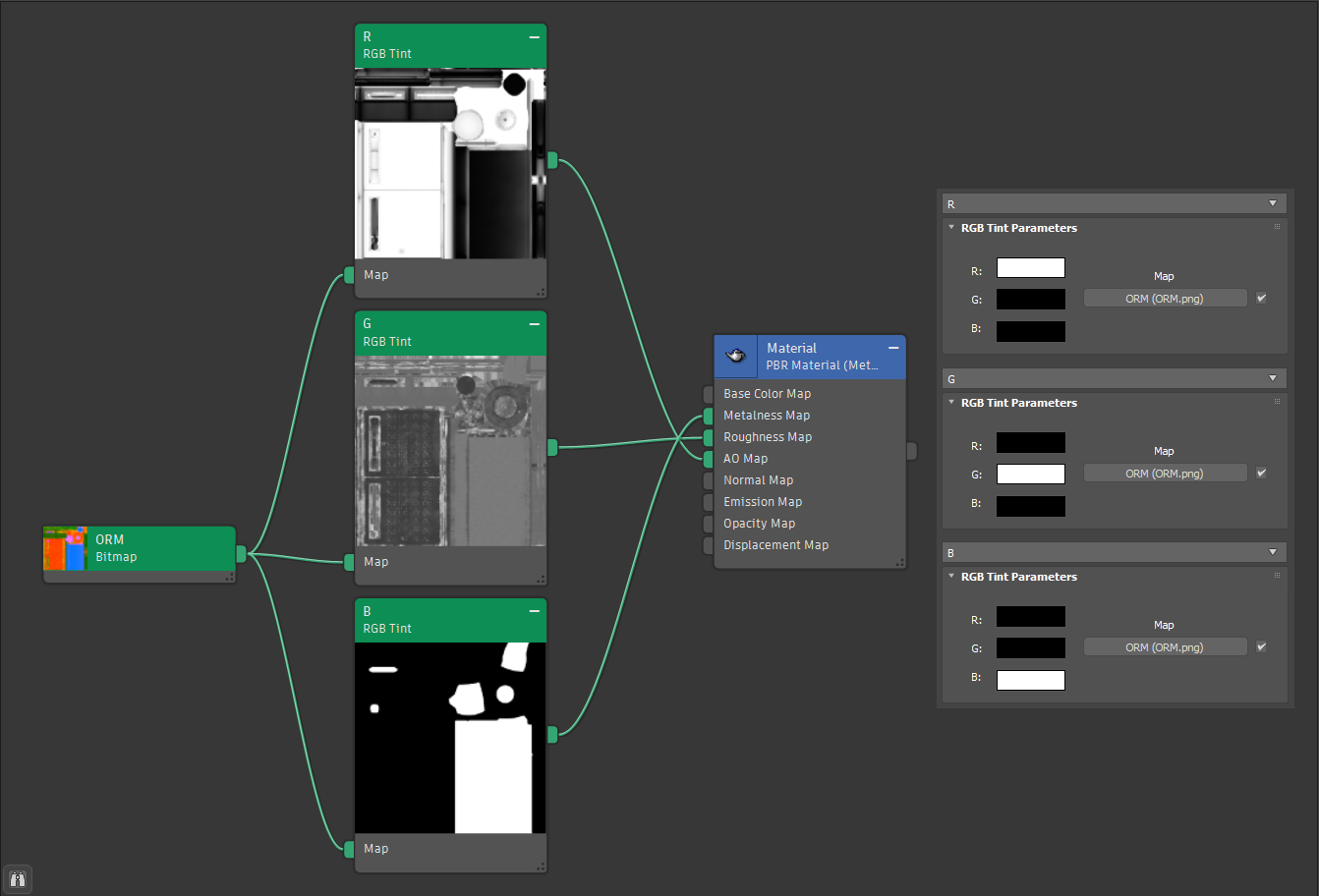

Option 1
RGB Tint maps should be used to separate texture RGB channels. To extract required channel from the texture, color for required channel in RGB Tint map should be set as white, for other channels it should be black.

  • RGB Tint map which represents AO should be connected directly to the material AO map input slot.
  • RGB Tint map which represents Roughness should be connected directly to the material Roughness map input slot.
  • RGB Tint map which represents Metalness should be connected directly to the material Metalness map input slot.


Option 2
OSL Color Correction map should be used to separate texture RGB channels.

  • Red output channel connected directly to the material AO map input slot.
  • Green output channel connected directly to the material Roughness map input slot.
  • Blue output channel connected directly to the material Metalness map input slot.


RMA

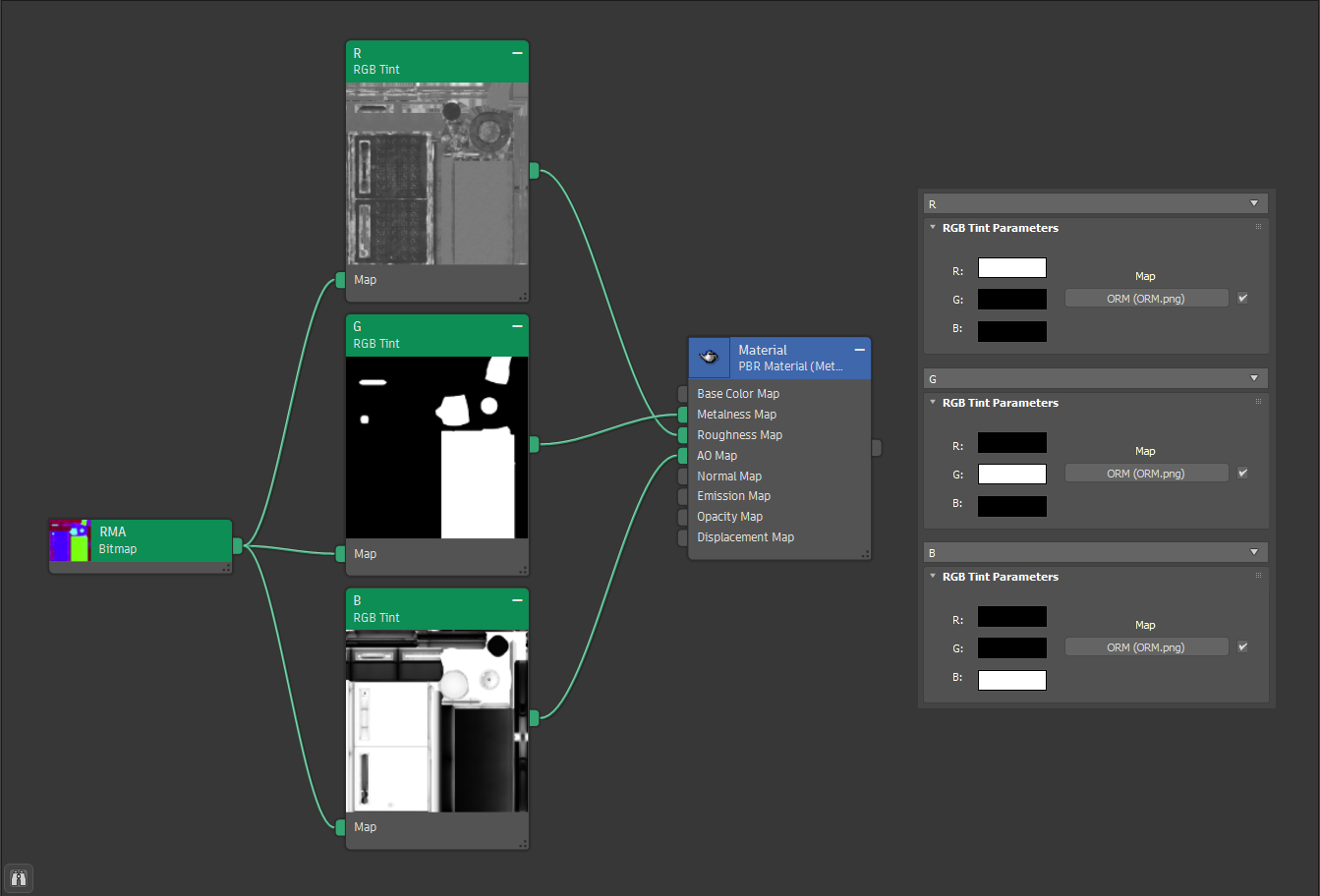

Option 1
RGB Tint maps should be used to separate texture RGB channels. To extract required channel from the texture, color for required channel in RGB Tint map should be set as white, for other channels it should be black.

  • RGB Tint map which represents Roughness should be connected directly to the material Roughness map input slot.
  • RGB Tint map which represents Metalness should be connected directly to the material Metalness map input slot.
  • RGB Tint map which represents AO should be connected directly to the material AO map input slot.

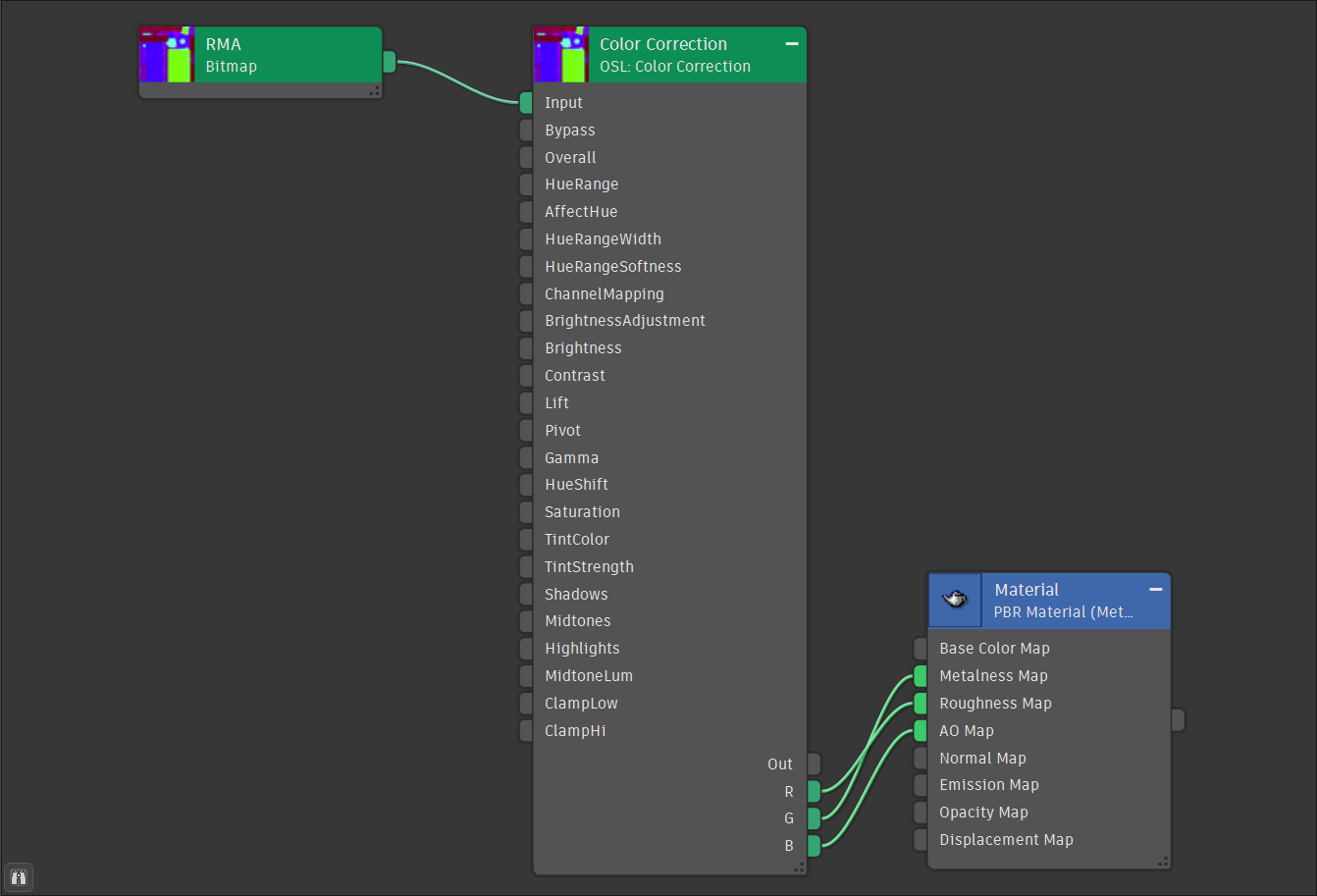

Option 2
OSL Color Correction map should be used to separate texture RGB channels.

  • Red output channel connected directly to the material Roughness map input slot.
  • Green output channel connected directly to the material Metalness map input slot.
  • Blue output channel connected directly to the material AO map input slot.

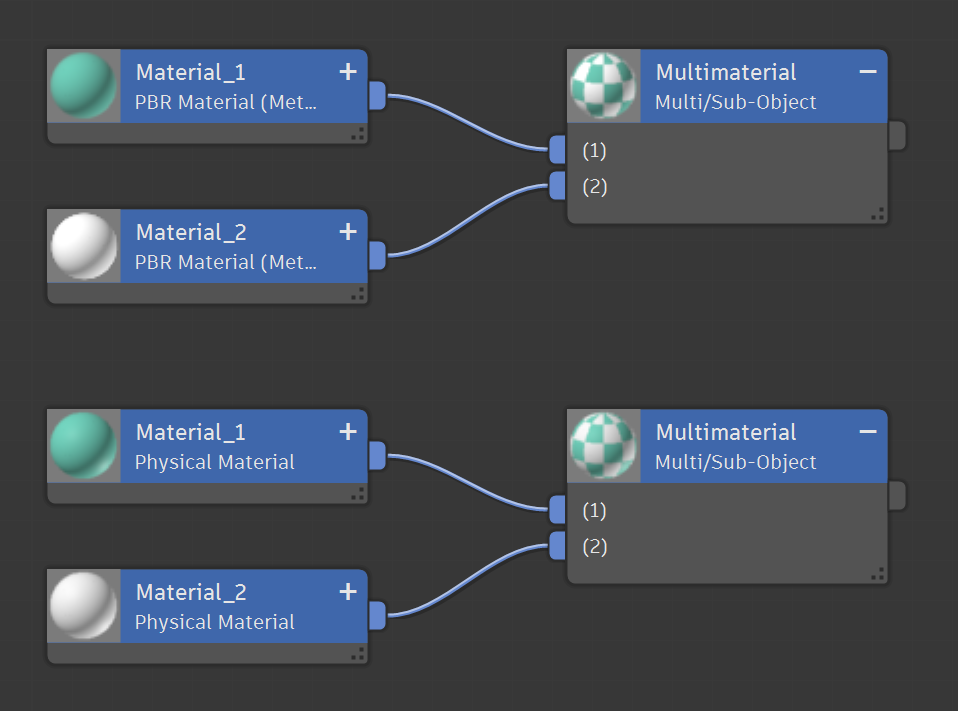

Multi/Sub-Object Material

Could be used when object should have more than one material assigned.


Blender

Supported materials

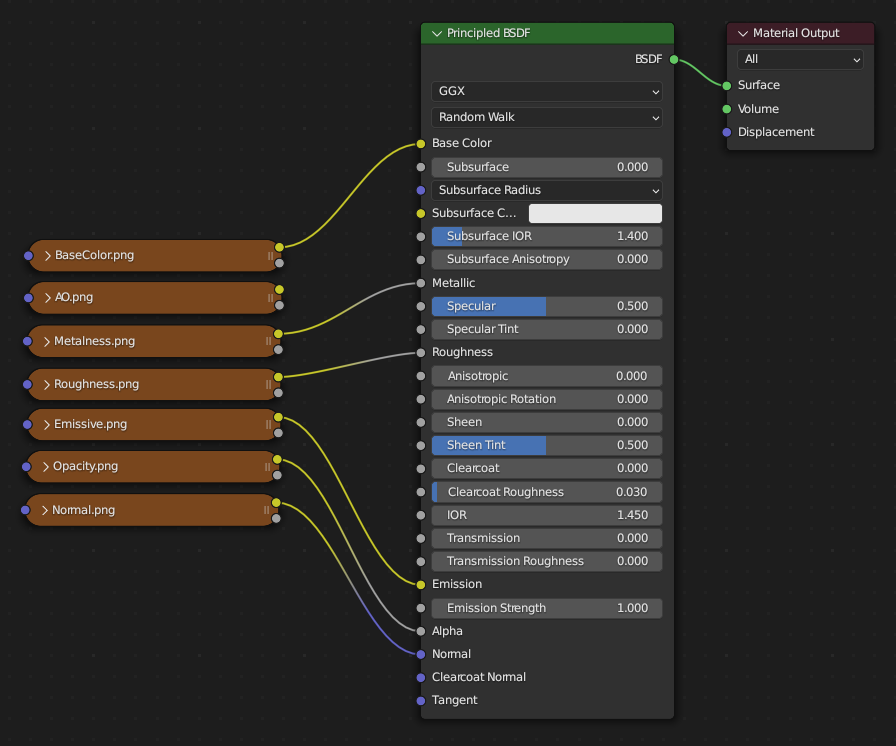

Principled BSDF Material setup


BaseColor

Option 1

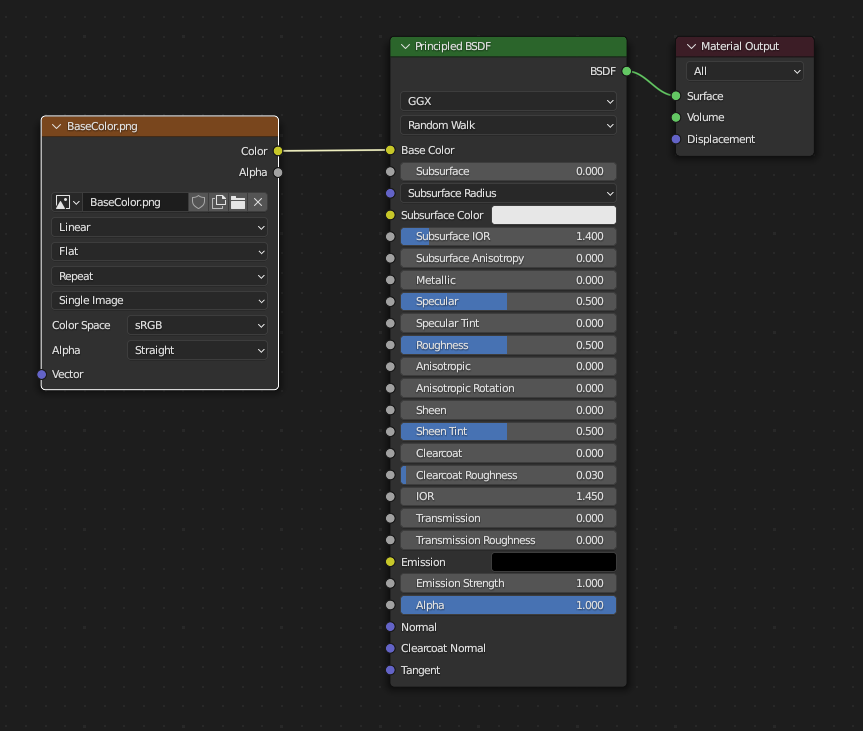

Image texture node with a BaseColor texture connected directly to the material Base Color input slot.

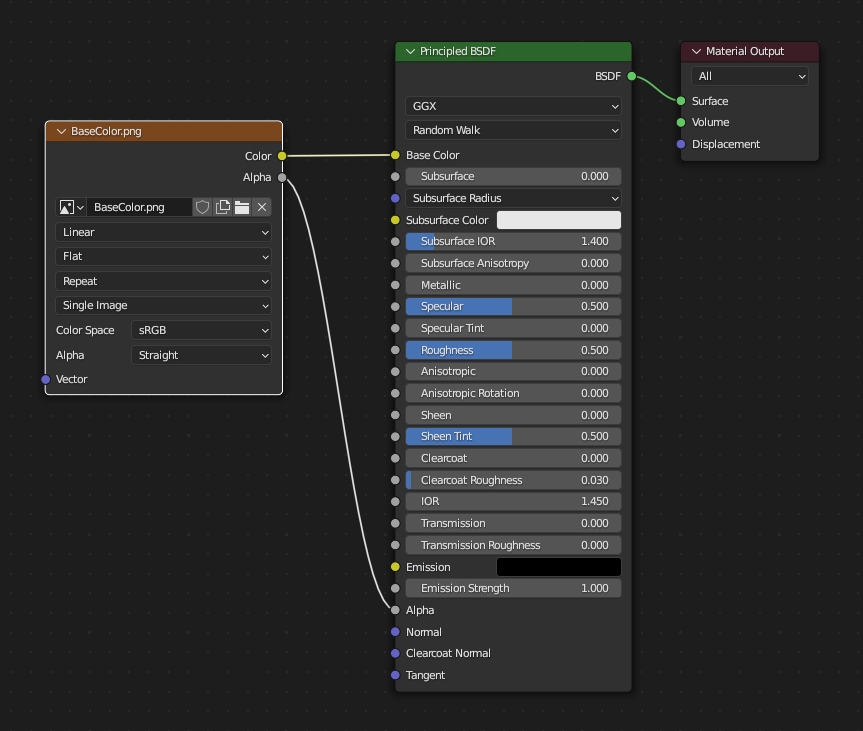

Option 2
If BaseColor texture has an Opacity map in the alpha channel, then:

  • Color channel of the Image texture node with a BaseColor texture should be connected to the material Base Color input slot.
  • Alpha channel of the Image texture node with a BaseColor texture should be connected to the material Alpha input slot.

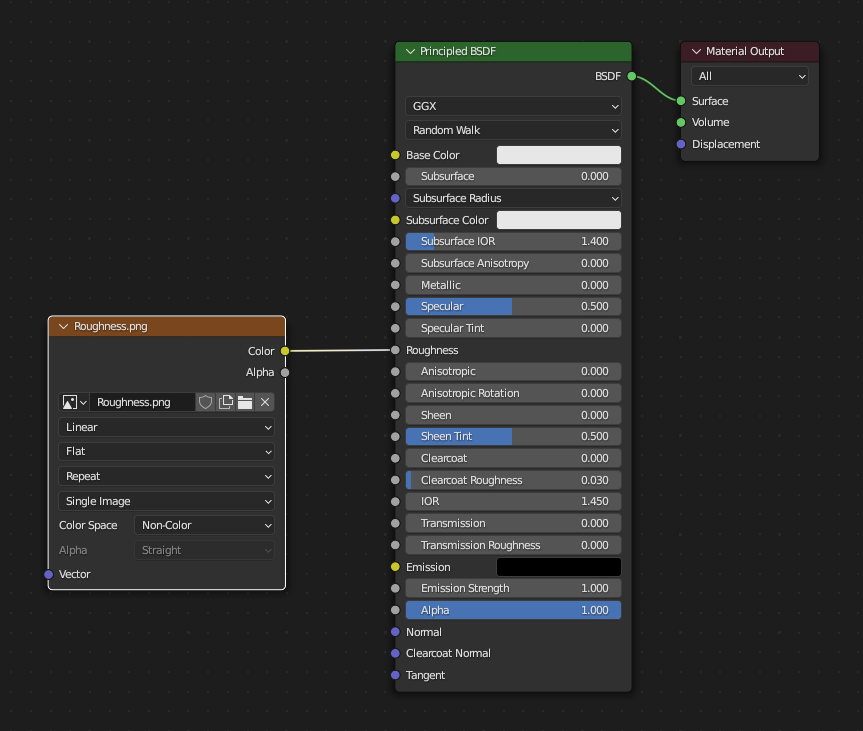

Roughness

Image texture node with a Roughness texture connected directly to the material Roughness input slot.


Metalness

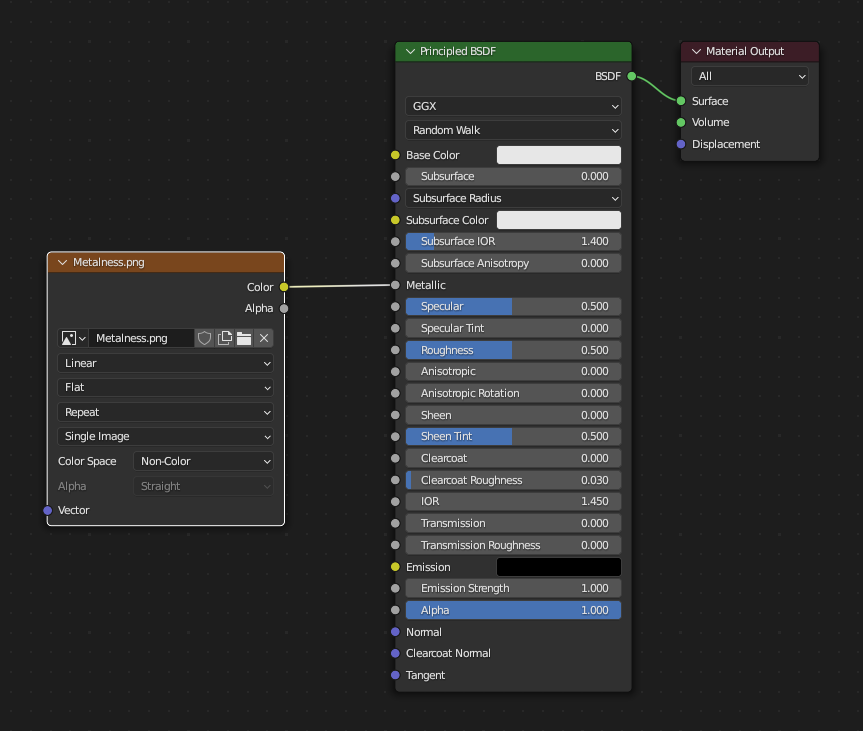

Image texture node with a Metalness texture connected directly to the material Metallic input slot.


Normal

Option 1
Image texture node with a Normal texture connected directly to the material Normal input slot.

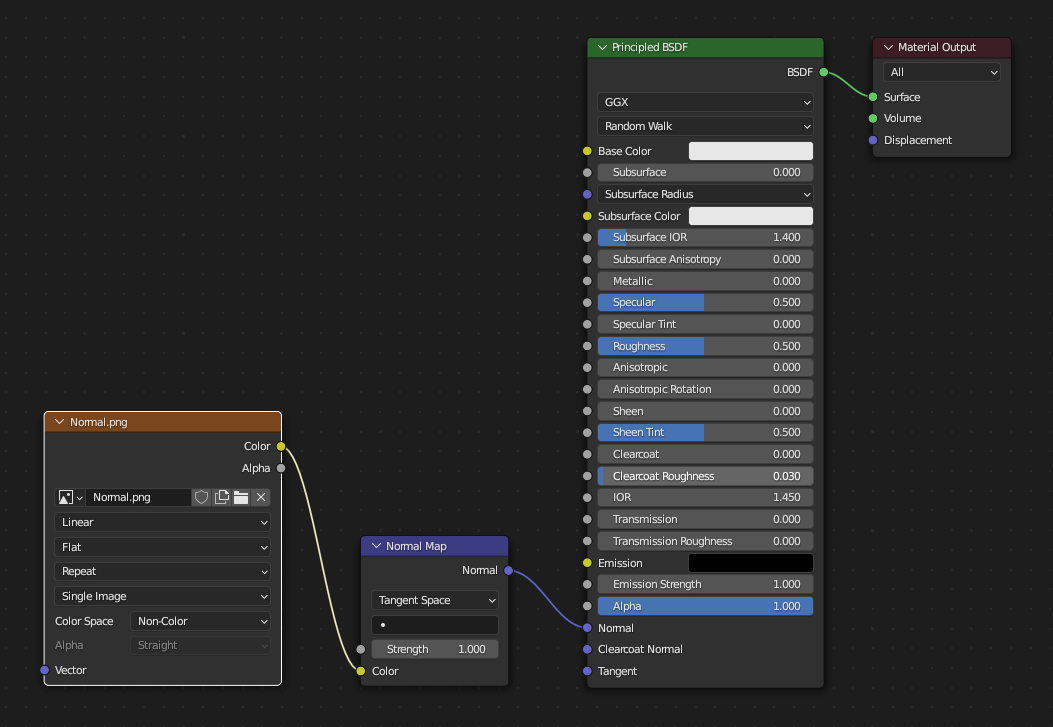

Option 2
Image texture node with a Normal texture connected directly to the Color input in the Normal map node which is connected to the material Normal input slot.


Normal map type (DirectX, OpenGL)
  • If Normal map file name has DirectX or OpenGL suffix then Normal type will be set for the collected textures accordingly to the suffix.
  • If Normal map does not have suffix with Normal type then Normal type will not be set.

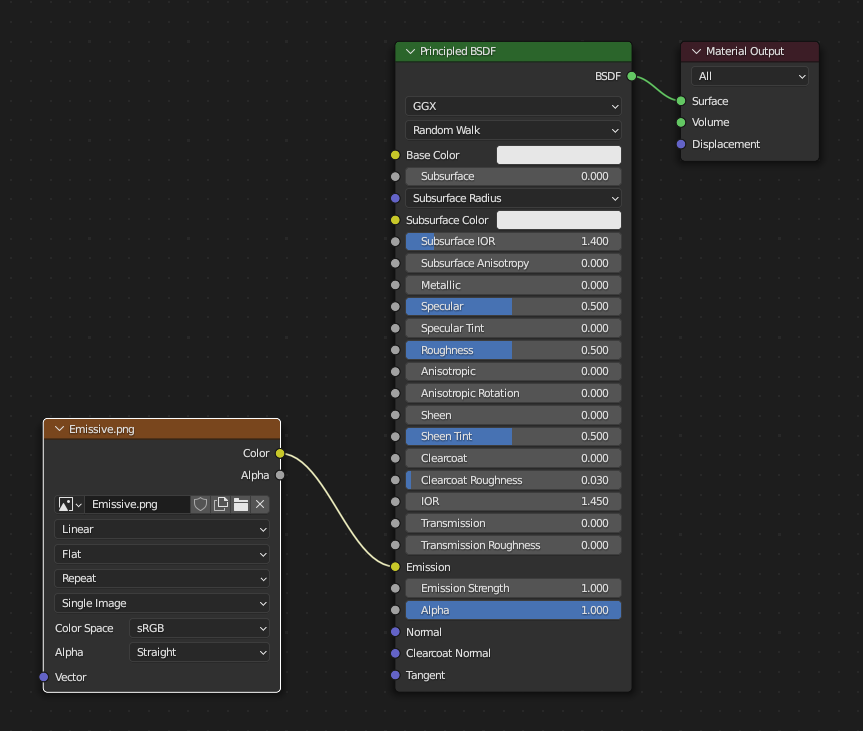

Emissive

Image texture node with an Emissive texture connected directly to the material Emission input slot.


AO

Option 1

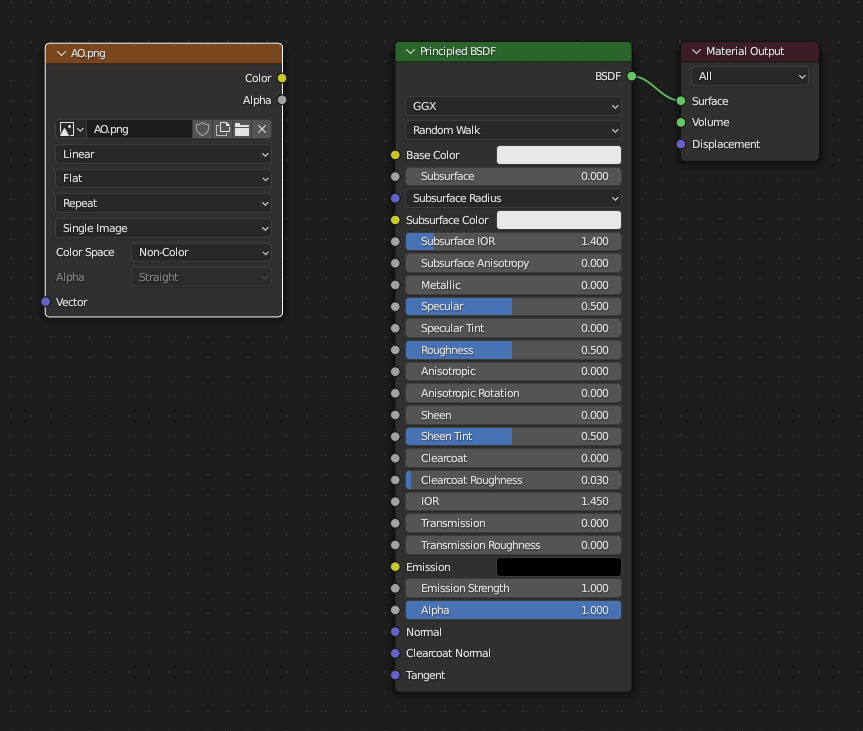

Unconnected Image texture node with an AO texture matching one of the naming patterns.
AO texture file name patterns (Case insensitive):

  • {texture_name}_AO.{file_extension}
  • {texture_name}_AmbientOcclusion.{file_extension}
  • {texture_name}_Ambient_Occlusion.{file_extension}
  • {texture_name}_Occlusion.{file_extension}


Option 2

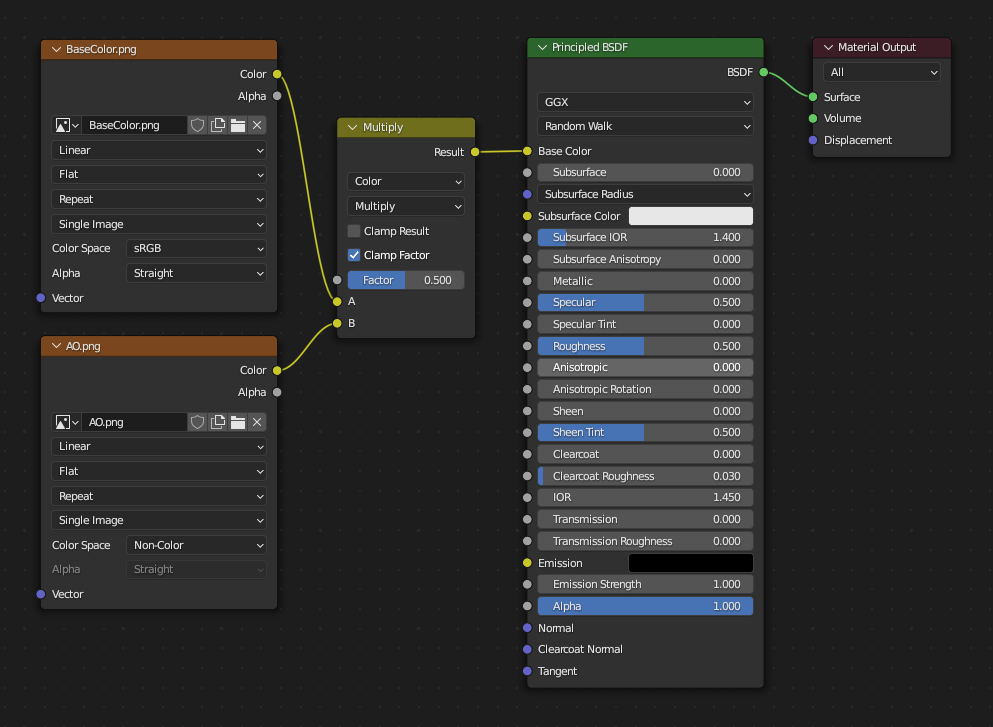

AO combined with BaseColor texture by using Multiply node which is connected to the material Base Color input slot. AO texture name should match one of the naming patterns.
AO texture file name patterns (Case insensitive):

  • {texture_name}_AO.{file_extension}
  • {texture_name}_AmbientOcclusion.{file_extension}
  • {texture_name}_Ambient_Occlusion.{file_extension}
  • {texture_name}_Occlusion.{file_extension}


Option 3

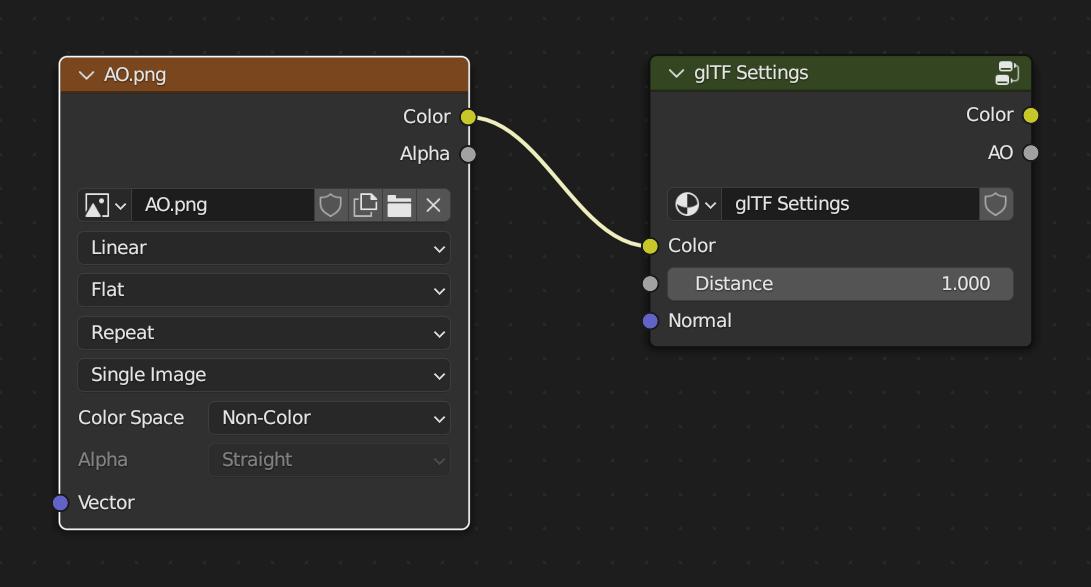

Image texture node with an AO texture connected to color input in unconnected custom group node named glTF Settings


Option 4

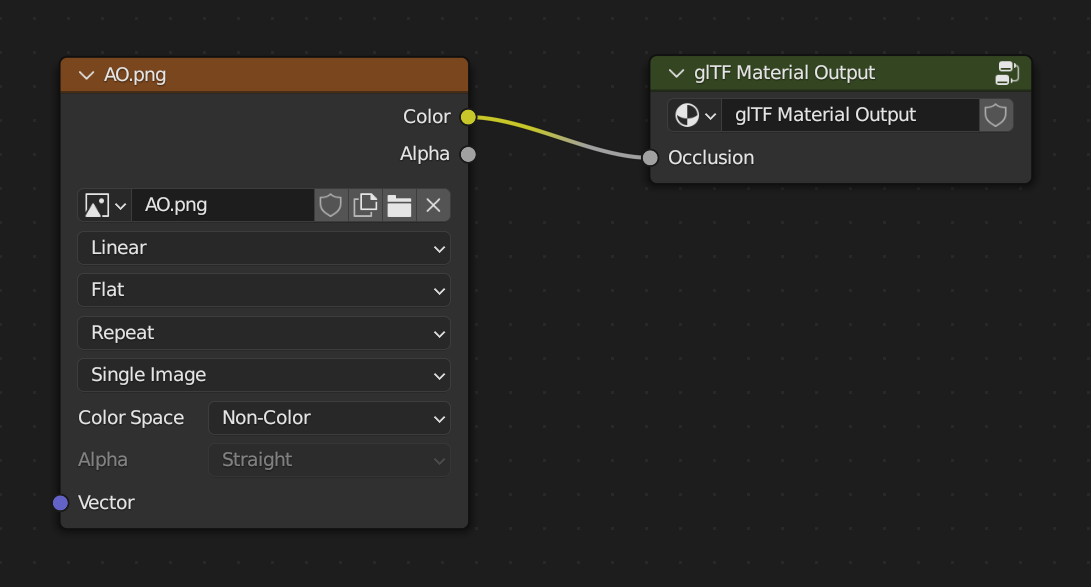

Image texture node with an AO texture connected to Occlusion input in unconnected custom group node named glTF Material Output


Opacity

Option 1

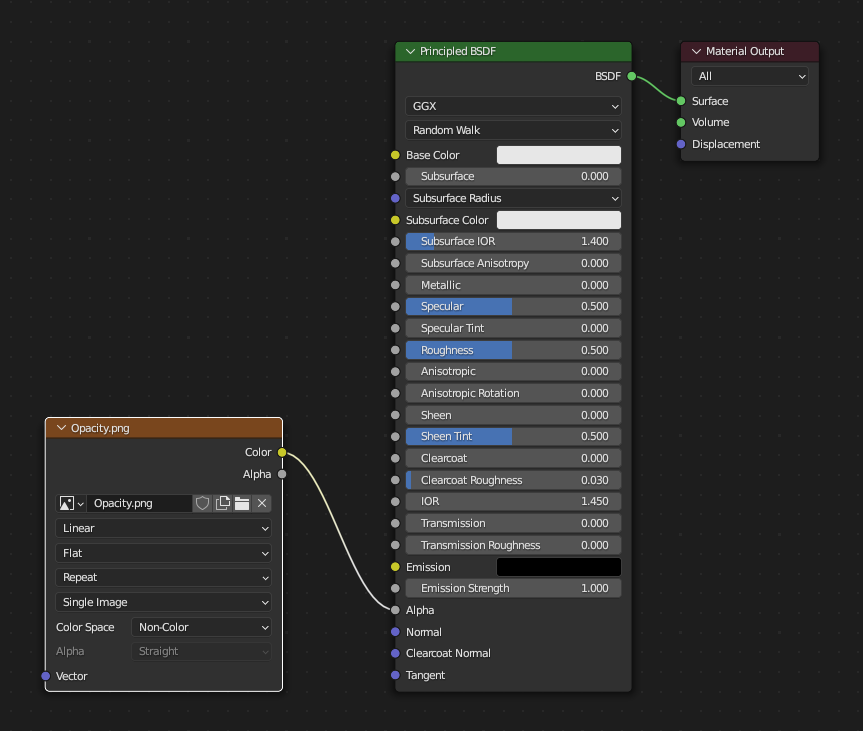

Image texture node with an Opacity texture connected directly to the material Alpha input slot.


Option 2
If Opacity map is presented in the BaseColor alpha channel, then:

  • Color channel of the Image texture node with a BaseColor texture should be connected to the material Base Color input slot.
  • Alpha channel of the Image texture node with a BaseColor texture should be connected to the material Alpha input slot.

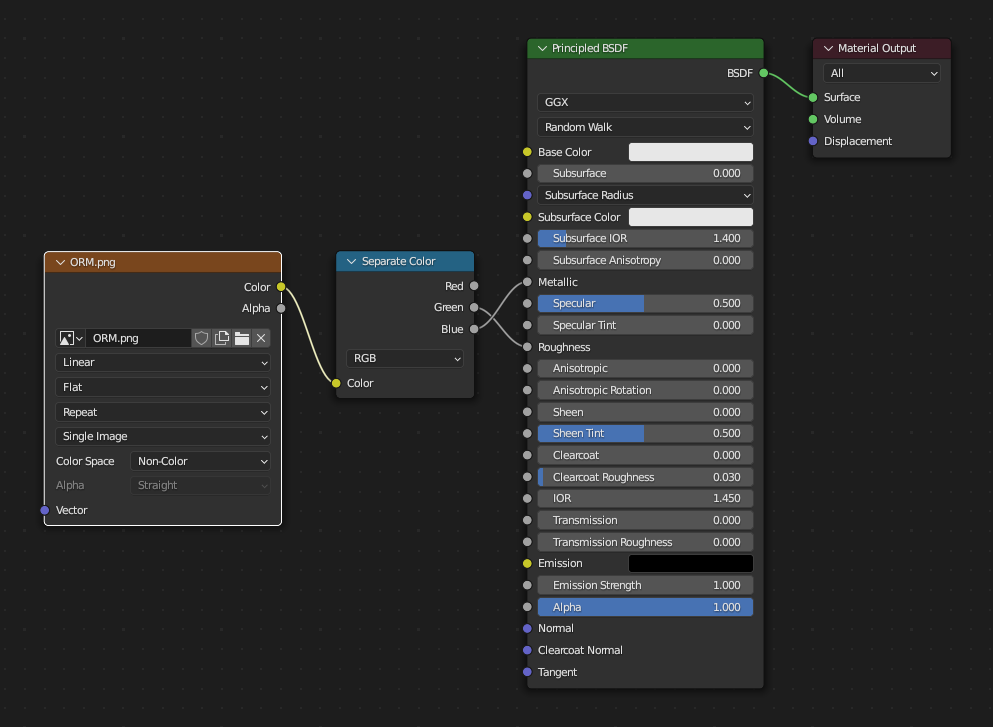

ORM

Image texture node with an ORM texture connected to the Color input in the Separate Color node which outputs are connected to the material input slots:
  • Red output connected to the material in the same way as separate AO texture. AO Setup
  • Green output connected to the Roughness input slot
  • Blue output connected to the Metallic input slot


RMA

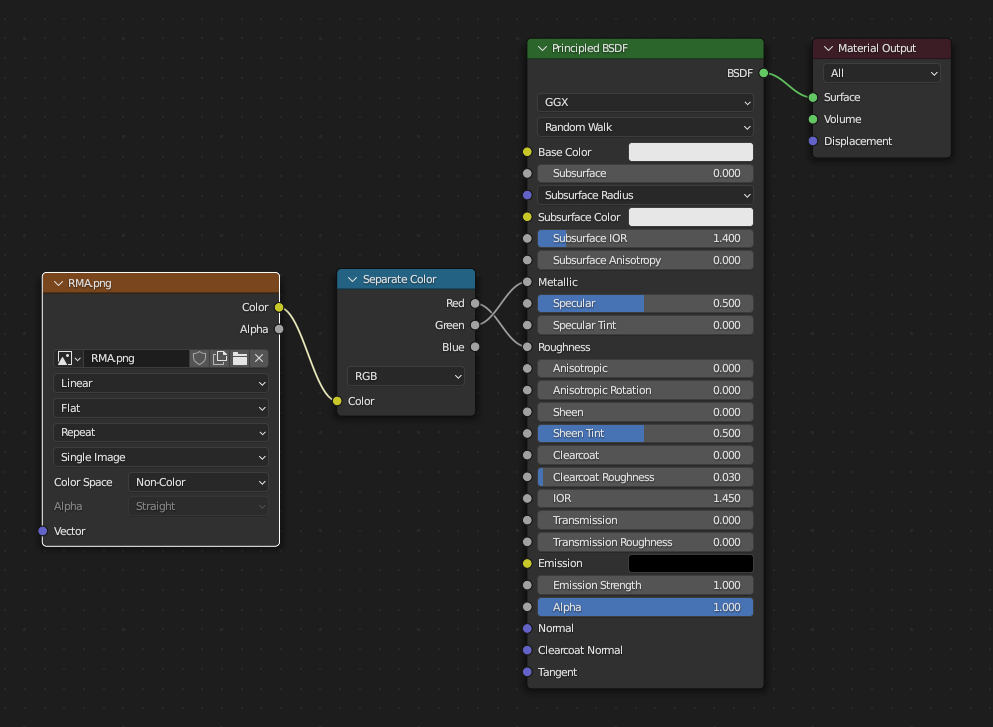

Image texture node with an RMA texture connected to the Color input in the Separate Color node which outputs are connected to the material input slots:
  • Red output connected to the Roughness input slot
  • Green output connected to the Metallic input slot
  • Blue output connected to the material in the same way as separate AO texture. AO Setup


Other textures

All other additional textures (Sheen, Anisotropic, IOR, etc.) connected to the material slots will be collected and renamed based on the material slot to which they are connected.

Articles in this section

See more
Was this article helpful?
0 out of 0 found this helpful
